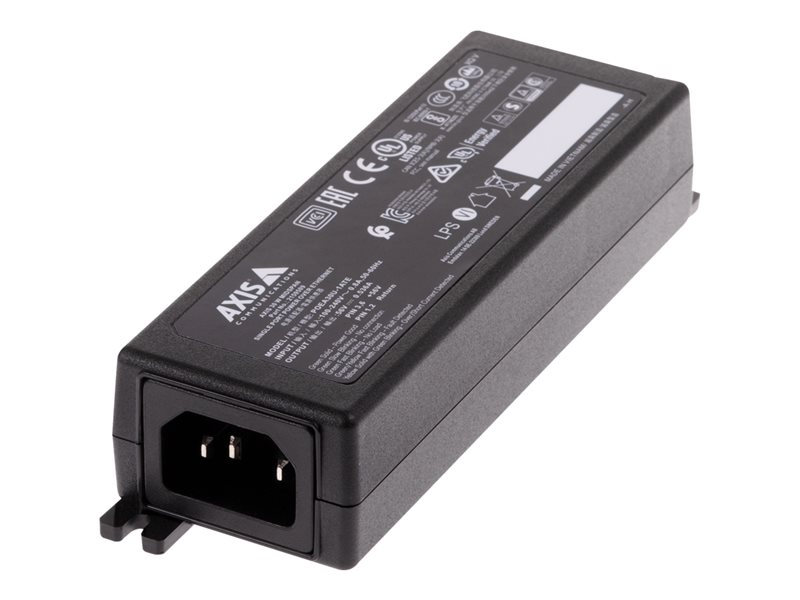

Axis Communications - AXIS Midspan
PoE injector - AC 100-240 V - 30 Watt - output connectors: 1 - United States - black - for AXIS A1610, C1410, D3110, M4308, P1385, P3818, Q1715, Q3536, Q3538, W400; P37 Series
Axis Communications
02172-004
7331021074071
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS Midspan - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 5.11 oz |
| Localization | United States |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 56 V |
| Power Capacity | 30 Watt |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output connectors | 1 x RJ-45 |
| Color | Black |
| Dimensions (WxDxH) | 1.8 in x 5.5 in x 1.2 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | AXIS A1610, A8207, C1410, D2110, D3110, I8016, M3057, M3064, M3065, M3066, M3067, M3068, M3075, M3077, M3115, M3116, M3205, M4308, P1377, P1378, P1385, P1455, P3247, P3248, P3715, P3818, P3925, P3935, P5654, Q1615, Q1715, Q1952, Q3536, Q3538, Q6075, Q9216, W400; ExCam XF M3016, XPT Q6075; P37 Series |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Color | Black |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable (C13) - external |
| Features | Wall mountable, DIN rail mountable |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, Plug and Play, CISPR 24, EN55024, EN 61000-6-1, CCC, EN 61000-6-2, UL 60950-1, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EAC, RCM, IS13252, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, KCC KN35, UL 62368-1, ICES-3(A)/NMB-3(A) |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 56 V |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 5.5 in |
| Height | 1.2 in |
| Weight | 5.11 oz |
| Compatibility Information | |
| Designed For | AXIS A1601 Network Door Controller, A1610-B, A8207-VE MkII Network Video Door Station, A8207-VE Network Video Door Station, C1410, C1410 Network Mini Speaker, D2110-VE Security Radar, D3110, I8016-LVE, M1134, M1134 Barebone, M1135, M1135 Barebone, M1135-E, M1137, M1137 Barebone, M1137-E, M3015 Network Camera, M3016 Network Camera, M3057-PLVE MkII, M3057-PLVE Network Camera, M3058-PLVE Network Camera, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3205-LVE Network Camera, M3206-LVE, M4206-LV Network Camera, M4206-V Network Camera, M4308-PLE, M5055, M7104 Video Encoder, P1375 Network Camera, P1375 Network Camera (Barebone), P1375-E, P1375-E Barebone, P1377, P1377 Barebone, P1377-LE, P1377-LE Barebone, P1378 Network Camera, P1378 Network Camera (Barebone), P1378-LE Network Camera, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, P3245-LV Network Camera, P3245-LVE Network Camera, P3245-V Network Camera, P3245-VE Network Camera, P3247-LVE, P3248-LV, P3248-LVE, P3715-PLVE, P3717-PLE, P3719-PLE, P3807-PVE Network Camera, P3818-PVE, P3905-R Mk II (Barebone), P3905-R Mk II M12 (Barebone), P3925-R, P3935-LR, P5654-E 50 Hz, P5654-E 60 Hz, P5655-E 50 Hz, P5655-E 60 Hz, P7304 Video Encoder, P9106-V, Q1615 Mk III, Q1615 Mk III Barebone, Q1615 MkIII Network Camera, Q1615-LE Mk III, Q1645, Q1645-LE Network Camera, Q1647, Q1647-LE, Q1659 Barebone, Q1700-LE License Plate Camera, Q1715, Q1785-LE, Q1786-LE, Q1798-LE, Q1952-E, Q3515-LV, Q3515-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3536-LVE, Q3538-LVE, Q6074, Q6074 50 Hz, Q6074 60 Hz, Q6074-E 50 Hz, Q6074-E 60 Hz, Q6075 50 Hz, Q6075 60 Hz, Q6075-E, Q6075-E 50 Hz, Q6075-E 60 Hz, Q6075-S, Q6075-S 60 Hz, Q6075-SE, Q6154-E 50Hz, Q6154-E 60Hz, Q9216-SLV Steel, Q9216-SLV White, W400 ¦ AXIS ExCam XF M3016 Explosion-Protected Network Camera, XF Q1645, XF Q1645 Explosion-Protected Network Camera, XPT Q6075 ¦ AXIS P37 Series P3727-PLE |
