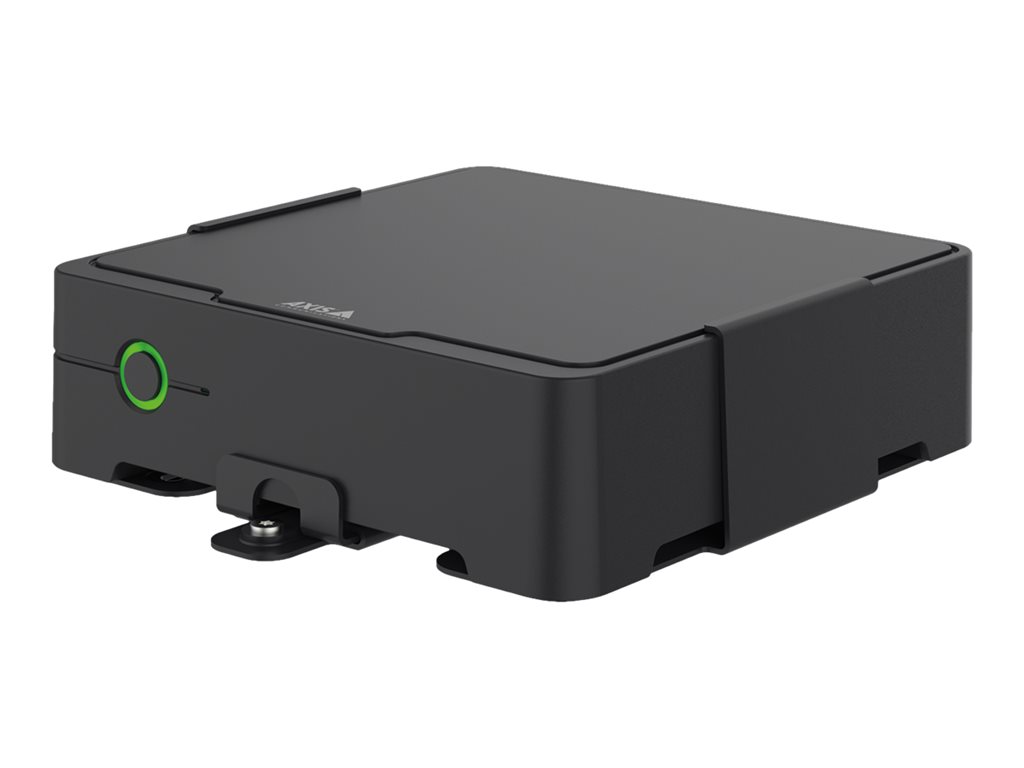

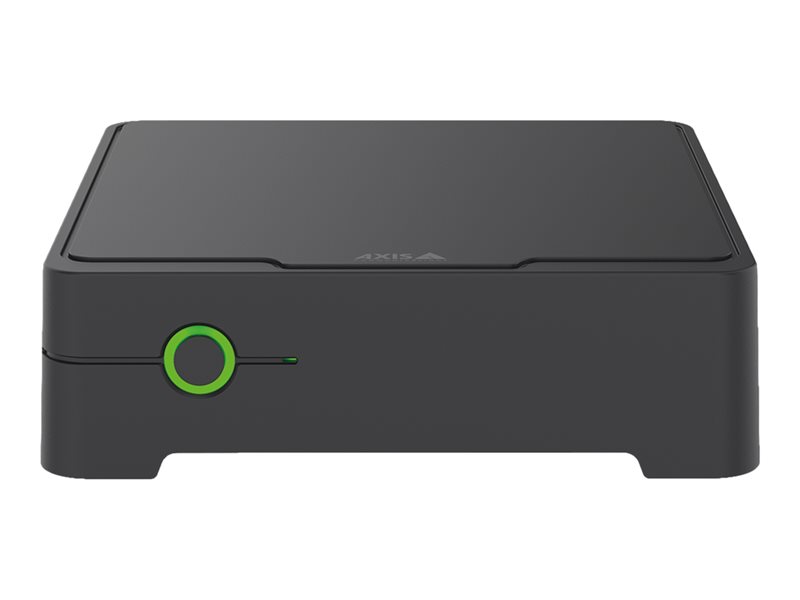

Axis Communications - AXIS W800 System Controller
Network management device - 5 ports - DC power
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS W800 System Controller - network management device |
| Device Type | Network management device |
| Form Factor | External |
| Localization | United States |
| Hard Drive | 480 GB |
| Ports Qty | 5 |
| Performance | Camera to system controller throughput: 100 Mbps ¦ System controller to content destination throughput: 1 Gbps ¦ Maximum docking stations: up to 5 |
| Capacity | Maximum cameras: 40 |
| Included Accessories | Mounting bracket |
| Power | DC 12 V |
| Dimensions (WxDxH) | 7.1 in x 7.1 in x 2.1 in |
| Weight | 26.98 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network management device |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 2.1 in |
| Weight | 26.98 oz |
| Enclosure Color | Black |
| Localization | United States |
| Expansion / Connectivity | |

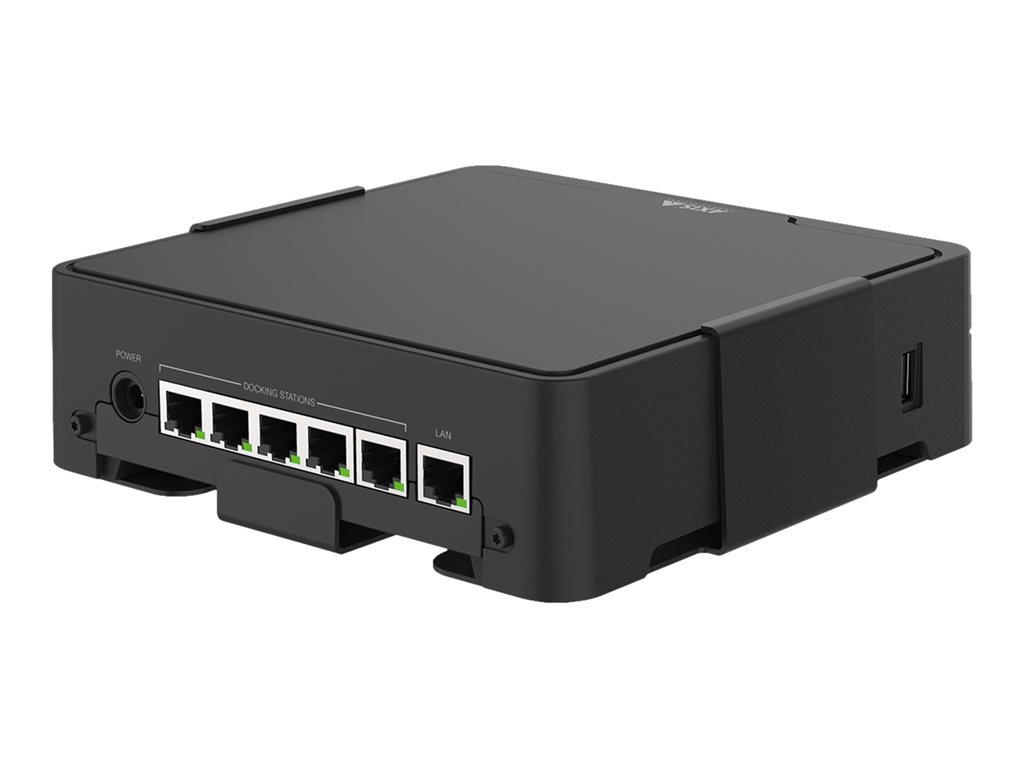

| Interfaces | 1 x 1000Base-T (uplink) - RJ-45 ¦ 5 x 1000Base-T - RJ-45 ¦ USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, RCM, USGv6, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 62368-1, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 60529 IP3X |
| Networking | |
| Form Factor | External |
| Ports Qty | 5 |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ARP, DHCP, DNS, Bonjour, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | HTTPS, NTP, ICMP, DHCP, IPv4, IPv6 |
| Performance | Camera to system controller throughput: 100 Mbps ¦ System controller to content destination throughput: 1 Gbps ¦ Maximum docking stations: up to 5 |
| Capacity | Maximum cameras: 40 |
| Features | Modular design, Network Access Control (NAC), secure boot, Trusted Platform Module 2.0 (TPM 2.0), Brute Force Protection, password protection |
| Encryption Algorithm | FIPS 140-2, 256-bit AES |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 16 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 480 GB |
