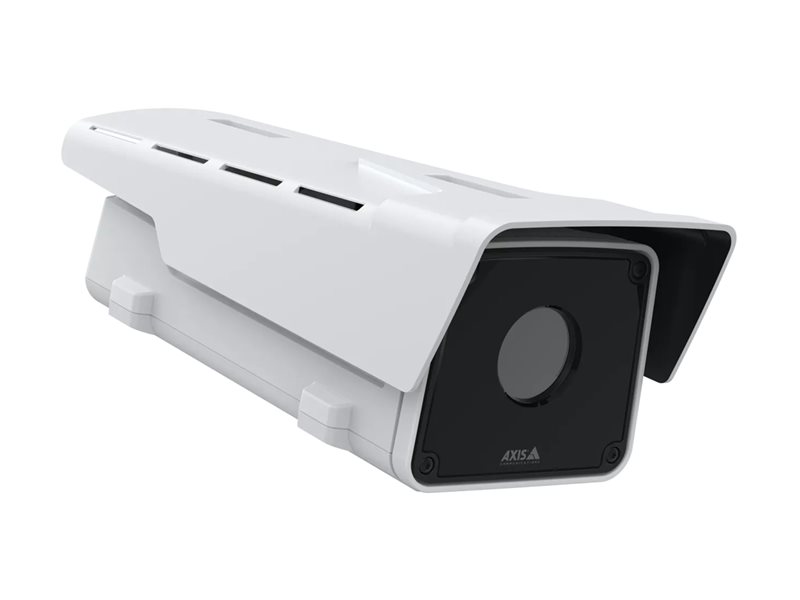

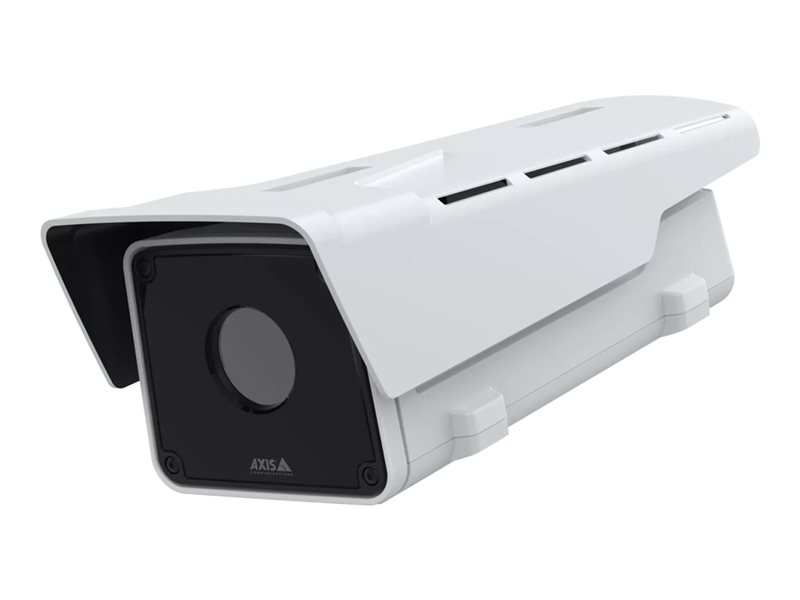

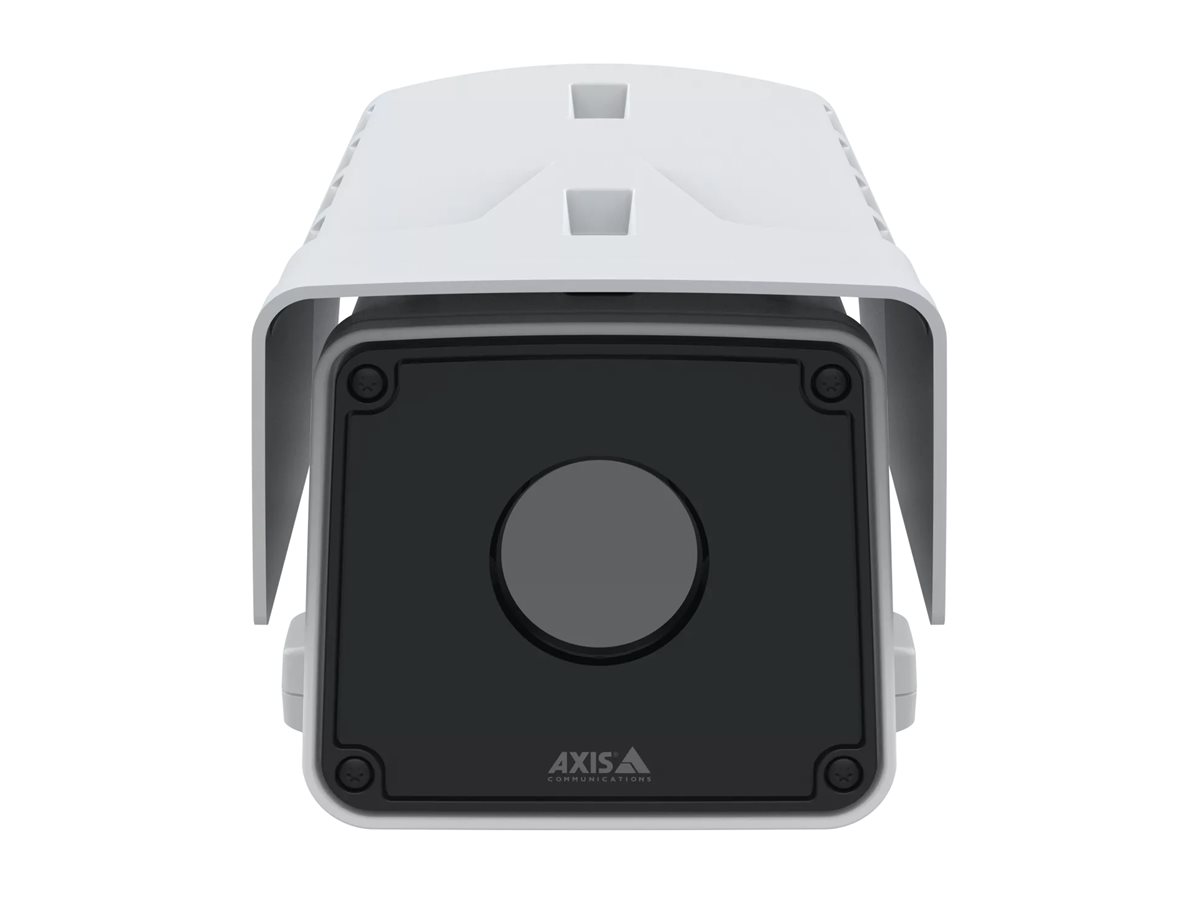

Axis Communications - AXIS Q21 Series Q2112-E
Thermal network camera - bullet - outdoor - weather resistant / impact resistant - 800 x 600 - audio - GbE - H.264, MJPEG, H.265, AVC, HEVC - DC 10 - 28 V / PoE Class 4 - TAA Compliant
Axis Communications
02603-001
N/A
N/A
New
Price: $5,354.15
MSRP: $6,299.00
Discount off MSRP: 15.00%
Total Available: 0
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS Q21 Series Q2112-E - thermal network camera - bullet - TAA Compliant |
| Device Type | Thermal network camera - fixed - bullet - outdoor - weather resistant / impact resistant |
| Audio | Yes: 10-band graphic equalizer, two-way audio via edge-to-edge technology |
| Weight | 7.72 lbs |
| Color | White, NCS S 1002-B |
| Connectivity Technology | Wired |
| Max Resolution | 800 x 600 |
| Frame Rate (max) | 8.3 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Uncooled Micro bolometer |
| Focal Length | 10 mm |
| Focus Adjustment | Athermalized (min distance 9 ft) |
| Lens Iris | F/1.2 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 10 - 28 V / PoE Class 4 |
| Features | Axis Edge Vault, thermal sensitivity 20 mK (NETD), electronic image stabilization, Thermal Imaging System, 640 x 480 thermal resolution, multiple color palettes, Zipstream technology, Audio Detection, active tampering alarm, 24/7 recording, false alarm reduction, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, 256 preset positions, controllable frame rate, controllable bandwidth, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, contrast control, brightness control, sharpness control, local contrast control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, polygon privacy mask, Automatic Gain Control (AGC), network speaker pairing, spectrum visualizer, half duplex audio, full duplex audio, bit rate control, Privacy Mask Function, Edge Storage, trigger recording, manually schedule recording, clips notification, alarm notifications, Pixel Counter Support, level grid, Network Time Security (NTS), aluminum housing, NAS-Ready, PVC free, TPM 2.0 module |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; 10 - 100% RH (condensing) relative humidity |
| General | |
| Device Type | Thermal network camera |
| Audio Support | Yes: 10-band graphic equalizer, two-way audio via edge-to-edge technology |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Weight | 7.72 lbs |
| Localization | Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | PEAP, MSCHAPv2, Dynamic PSK, TLS 1.2, TLS 1.3, PKI, 256-bit AES-XTS-Plain64 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Terminal block connectors, connector guard, cable gaskets, owner authentication key |
| TAA Compliant | Yes |
| Compliant Standards | IK10, IP66, IP67, NEMA Type 4X, NEMA TS-2, FIPS 140-2, Halogen-free, CSA, cUL, KC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, MIL-STD 810H 501.7, MIL-STD 810H 502.7, MIL-STD 810H 505.7, MIL-STD 810H 506.6, MIL-STD 810H 507.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 514.8, MIL-STD 810H 516.8, MIL-STD 810H 521.4, RCM, AS/NZS CISPR 32 Class A, ICES, NMB-003, VCCI Class A, KS C 9835, KS C 9832, FCC Part 15 Subpart B:2020 Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IEC/EN 62262, ISO 21207 method B, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, ETSI EN 303 645, BSI |
| Color | White, NCS S 1002-B |
| Power | |
| Power Requirements | DC 10 - 28 V / PoE Class 4 |
| Power Device | 5.6 Watt |
| Software / System Requirements | |
| Software Included | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, AXIS Speed Monitor |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Camera | |
| Type | - fixed - outdoor - weather resistant / impact resistant |
| Digital Video Format | H.264, MJPEG, H.265, AVC, HEVC |
| Max Digital Video Resolution | 800 x 600 |
| Motion Detection | Yes |
| Digital Video Capture Resolution | 800 x 600, 768 x 576, 384 x 288 |
| Frame Rate (max) | 8.3 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Axis Edge Vault, thermal sensitivity 20 mK (NETD), electronic image stabilization, Thermal Imaging System, 640 x 480 thermal resolution, multiple color palettes, Zipstream technology, Audio Detection, active tampering alarm, 24/7 recording, false alarm reduction, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, 256 preset positions, controllable frame rate, controllable bandwidth, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, contrast control, brightness control, sharpness control, local contrast control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, polygon privacy mask, Automatic Gain Control (AGC), network speaker pairing, spectrum visualizer, half duplex audio, full duplex audio, bit rate control, Privacy Mask Function, Edge Storage, trigger recording, manually schedule recording, clips notification, alarm notifications, Pixel Counter Support, level grid, Network Time Security (NTS), aluminum housing, NAS-Ready, PVC free, TPM 2.0 module |
| Lens Construction | |
| Focal Length | 10 mm |
| Lens Iris | F/1.2 |
| Focus Adjustment | Athermalized |
| Min Focus Distance | 9 ft |
| Horizontal Field of View (degree) | 63 |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Effective Pixels | 640 x 480 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, EAP |
| Alarm Inputs Qty | 4 |
| Alarm Outputs Qty | 4 |
