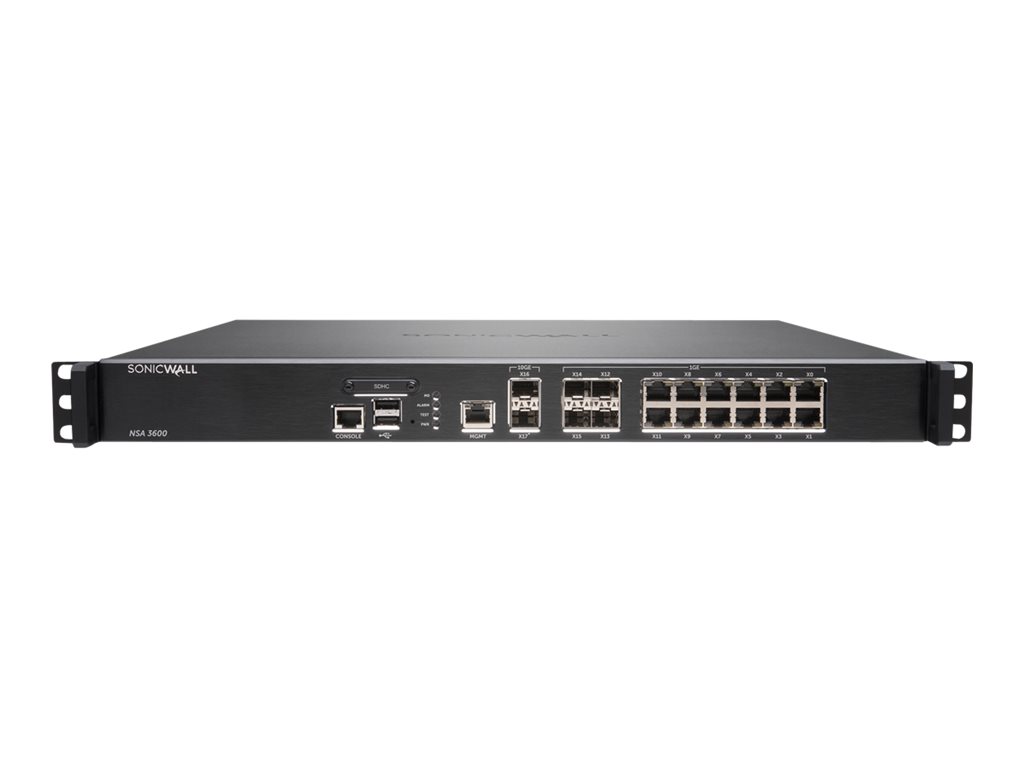

SonicWall - SonicWall NSa 3600
Security appliance - High Availability - restricted license use - 10GbE - 1U - rack-mountable
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | SonicWall NSa 3600 - security appliance - High Availability |
| Device Type | Security appliance |
| License Qty | Restricted license use |
| Form Factor | Rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Firewall throughput: 3.4 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 500 Mbps ¦ Application throughput: 1.1 Gbps ¦ IPS throughput: 1.1 Gbps ¦ Anti-malware throughput: 600 Mbps ¦ Firewall throughput (IMIX): 900 Mbps ¦ SSL throughput: 300 Mbps ¦ VPN throughput: 1.5 Gbps ¦ Connection rate: 20000 connections per second |
| Capacity | SPI connections: 750000 ¦ DPI connections: 375000 ¦ Maximum number of access points: 48 ¦ VPN tunnels (site-to-site): 1000 ¦ IPSec VPN connections: 50 (maximum 1000) ¦ SSL VPN users: 2 (maximum 350) ¦ Virtual interfaces (VLANs): 256 ¦ Single Sign-On (SSO) users: 40000 |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 19.1 in x 16.9 in x 1.8 in |
| Weight | 13.56 lbs |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 19.1 in |
| Depth | 16.9 in |
| Height | 1.8 in |
| Weight | 13.56 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 2 x 10GBase-X - SFP+ ¦ 4 x 1000Base-X - SFP (mini-GBIC) ¦ 12 x 1000Base-T - RJ-45 ¦ 2 x USB - Type A ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 |
| Miscellaneous | |
| MTBF | 16.76 years |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A, CoC, CU |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI |
| Performance | Firewall throughput: 3.4 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 500 Mbps ¦ Application throughput: 1.1 Gbps ¦ IPS throughput: 1.1 Gbps ¦ Anti-malware throughput: 600 Mbps ¦ Firewall throughput (IMIX): 900 Mbps ¦ SSL throughput: 300 Mbps ¦ VPN throughput: 1.5 Gbps ¦ Connection rate: 20000 connections per second |
| Capacity | SPI connections: 750000 ¦ DPI connections: 375000 ¦ Maximum number of access points: 48 ¦ VPN tunnels (site-to-site): 1000 ¦ IPSec VPN connections: 50 (maximum 1000) ¦ SSL VPN users: 2 (maximum 350) ¦ Virtual interfaces (VLANs): 256 ¦ Single Sign-On (SSO) users: 40000 |
| Features | NAT support, VPN support, load balancing, Stateful Packet Inspection (SPI), DoS attack prevention, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), RADIUS support, DHCP server, DNS proxy, DHCP relay, NetFlow, IPFIX, 2 fans |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, internal user database, XAUTH authentication |
| Compliant Standards | IEEE 802.3, IEEE 802.1p |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 74.3 Watt |
| Power Provided | 250 Watt |
| Software / System Requirements | |
| OS Provided | SonicOS 6.5 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Communications | |
| Supported Flash Memory Cards | SD Memory Card |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 20.79 lbs |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| IP Telephony Features | VoIP gatekeeper support, VoIP outbound bandwidth management |
