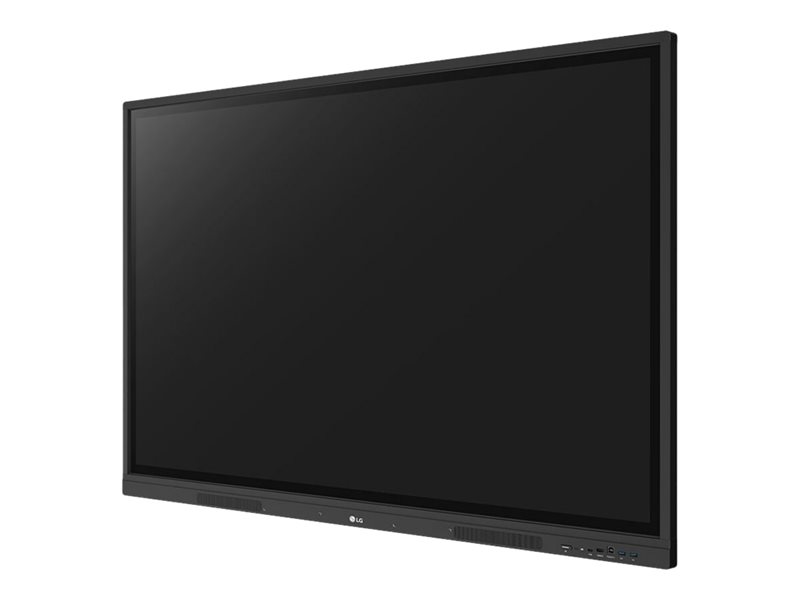

LG Electronics - LG CreateBoard 86TR3DK-B
86" Diagonal Class TR3DK Series LED-backlit LCD display - education / business - with touchscreen (multi touch) - Android - 4K UHD (2160p) 3840 x 2160
LG Electronics
86TR3DK-B
0195174042663
N/A
New
Price: $3,001.31
E-Waste Fee: $6.00
MSRP: $3,568.00
Discount off MSRP: 15.88%
Total Available: 0
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | LG CreateBoard 86TR3DK-B TR3DK Series - 86" LED-backlit LCD display - 4K - for education / business |
| Product Type | LED-backlit LCD flat panel display with touchscreen (multi touch) |
| Diagonal Class | 86" |
| Commercial Use | Yes - education / business |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | VGA (HD-15), USB-C |
| Technology | IPS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Lock Mode, Secure Mode, LG ConnectedCare, LG CreateBoard Lab, Note 2.0, LG CreateBoard Share, OfficeSuite, Smart Viewing, auto-remove files |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | Yes |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 385 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) - without stand | 77 in x 3.9 in x 45.7 in |
| Weight | 129.19 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 580 Watt |
| Power Consumption Operational | 385 Watt |
| Diagonal Class | 86" |
| Commercial Use | Yes - education / business |
| Combined With | Touchscreen (multi touch) |
| Series | TR3DK Series |
| Platform | Android |
| Operating System | Android OS 11 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | VGA (HD-15), USB-C |
| Dimensions | Without stand |
| Width | 77 in |
| Depth | 3.9 in |
| Height | 45.7 in |
| Weight | 129.19 lbs |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH |
| Display | |
| LCD Display Technology | IPS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness | 400 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 40 |
| Response Time | 8 ms |
| Backlight Life | 30,000 hour(s) |
| Commercial Features | Lock Mode, Secure Mode, LG ConnectedCare, LG CreateBoard Lab, Note 2.0, LG CreateBoard Share, OfficeSuite, Smart Viewing, auto-remove files |
| Operation Hours / Days | 16 / 7 |
| Additional Features | Infrared multitouch technology, OPS Slot |
| Connections | |
| Connector Type | 3 x HDMI ¦ HDMI output ¦ Audio line-out ¦ Audio line-in ¦ RS-232 input ¦ 3 x USB 3.0 ¦ USB 2.0 ¦ USB-C with Power Delivery ¦ LAN input ¦ LAN output ¦ 2 x Touch output ¦ VGA input |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 30 Watt |
| Speakers | 2 x speaker - 15 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 83.1 in |
| Depth (Shipping) | 8.9 in |
| Height (Shipping) | 50.5 in |
| Weight (Shipping) | 167.33 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac, 802.11ax |
| Bluetooth Version | Bluetooth 5.0 |
| Connect & Share | Screen Share |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| Configuration | Quad-Core - 4 GB - 32 GB - Mali-G52 MP2 |
