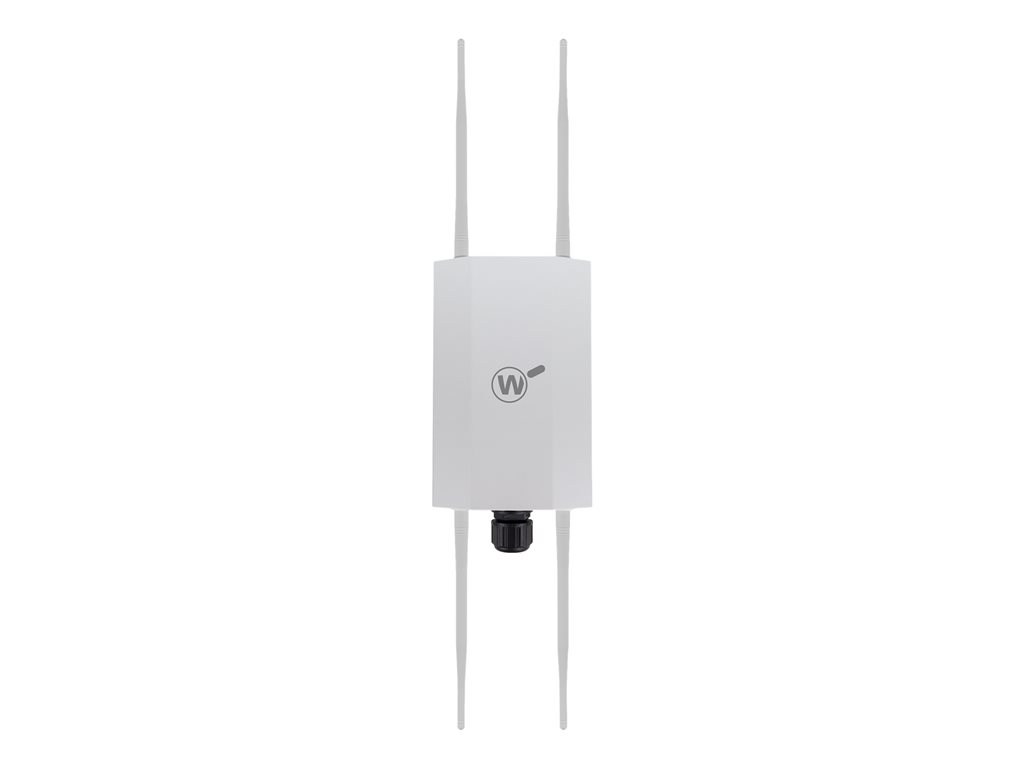

WatchGuard - WatchGuard AP332CR
Wireless access point - outdoor/rugged - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed
WatchGuard
WGA332000000
0654522881045
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | WatchGuard AP332CR - wireless access point - outdoor/rugged - Wi-Fi 6 - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | External - outdoor |
| Processor | 1 x Qualcomm IPQ6010 - 1.8 GHz |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Simultaneous users MU-MIMO: 4 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 7.5 in x 4.9 in x 2.1 in |
| Weight | 8.97 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 7.5 in |
| Depth | 4.9 in |
| Height | 2.1 in |
| Weight | 8.97 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 ¦ 4 x antenna - SMA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL, cUL, FCC Part 15.247, IC, RoHS, FCC Part 15.407, IP67, EN 300 328, EN 301 893, EN |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Simultaneous users MU-MIMO: 4 |
| Features | DFS-2 support, Dynamic Frequency Selection (DFS), 2x2 MIMO technology, bandwidth agility |
| Encryption Algorithm | WPA3 |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 11.65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Qualcomm IPQ6010 1.8 GHz |
| Max Supported Qty | 1 |
| RAM | 1 GB DDR3L SDRAM |
| Flash Memory | 256 MB |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Directivity | Omni-directional |
| Gain Level | 5 dBi |
