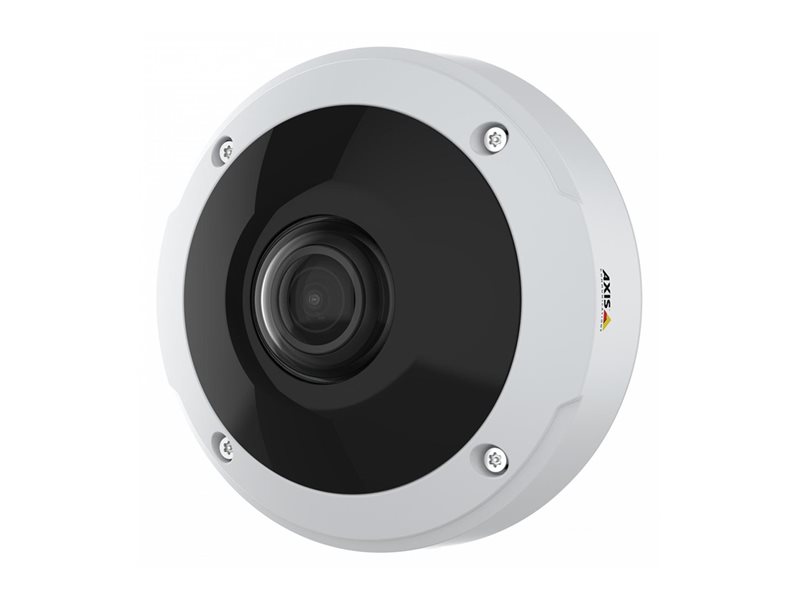

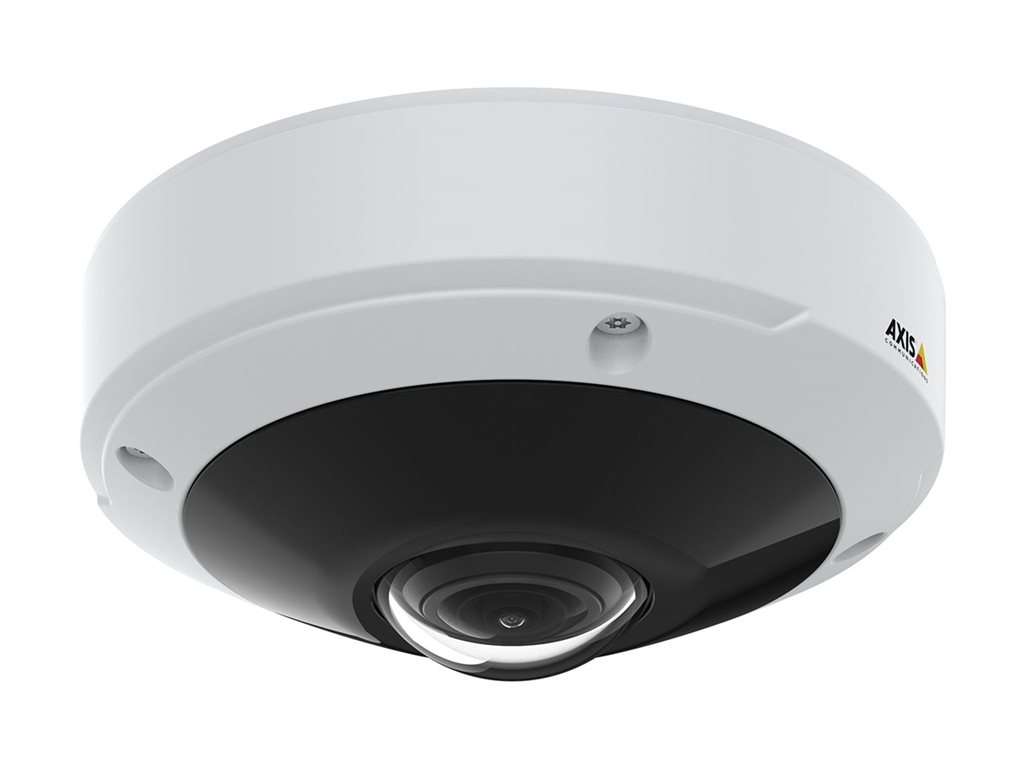

Network panoramic camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 6 MP - 2016 x 2016 - fixed iris - fixed focal - LAN - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | AXIS M30 Series M3057-PLR MK II - network panoramic camera - dome |
| Device Type | Network panoramic camera - fixed - dome - outdoor - vandal / weatherproof |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 2.6 in |
| Weight | 26.81 oz |
| Color | NCS S 1002-B, white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2016 x 2016 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | RGB CMOS - 1/1.8" - 6 MP |
| Minimum Illumination | 0.16 lux - color - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 1.56 mm |
| Lens Iris | F/2.0 - fixed iris |
| Interfaces | LAN |
| Voltage | PoE Class 3 |
| Features | Infrared-cut filter, 360° field of view, digital roll, Zipstream technology, active tampering alarm, Adaptive Bitrate (ABR), auto exposure control, brightness control, centralized certificate management, compression, contrast control, Corridor mode, day/night shift level, day/night threshold, digital PTZ function, dynamic text overlay, exposure control, Forensic WDR, guard tour, HTTPs encryption, image mirror, image overlay, IP address filtering, low latency mode, multi view mode, Multi-Bitrate (MBR), on-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, polygon privacy mask, saturation control, sharpness control, tone mapping, user access log, Variable Bitrate (VBR), video streaming indicator, white balance, Wide Dynamic Range (WDR), polycarbonate bubble, aluminum housing, NAS-Ready, Lightfinder technology, OptimizedIR |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 122 °F; 10 - 100% RH (condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 2.6 in |
| Weight | 26.81 oz |
| Localization | United Kingdom, United States, Korea, Japan, Europe, Brazil, Argentina, Australia |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, PEAP, MSCHAPv2, TLS 1.3, TLS 1.2, 256-bit AES-XTS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Drill hole template, cable gaskets, connector guard, I/O connector, Resitorx TR20 screw bit, mounting bracket, cable hole lid, view protector |
| Compliant Standards | EN 50155, EN 45545-2, IEEE 802.1x, IEEE 802.1ar, X.509, PVC-free, IEEE 802.3af, IEEE 802.3at, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-22, ECE-R10 Rev.6 (E approval), EN 50121-3-2, EN 50121-4, EN 50155:2017 Class OT2/ST2, EN 50498, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-64, IEC 60721-3-5 Class 5M3, IEC 62236-4, IEC 62471, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10, IEC/EN 63000, IEC/EN/UL 62368-1, IS 13252, KS C 9832 Class A, KS C 9835, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NFPA 130, NIST SP500-267, RCM, UN ECE R118, VCCI Class A |
| Color | NCS S 1002-B, white |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 8.2 Watt |
| Software / System Requirements | |
| Software Included | AXIS Video Motion Detection, Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2016 x 2016 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/16000 sec |
| Minimum Illumination | 0.16 lux - color - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 160 x 160, 2560 x 1440, 192 x 72, 2560 x 1920, 384 x 288, 2016 x 2016, 1920 x 1440, 256 x 144, 2368 x 1184 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Infrared-cut filter, 360° field of view, digital roll, Zipstream technology, active tampering alarm, Adaptive Bitrate (ABR), auto exposure control, brightness control, centralized certificate management, compression, contrast control, Corridor mode, day/night shift level, day/night threshold, digital PTZ function, dynamic text overlay, exposure control, Forensic WDR, guard tour, HTTPs encryption, image mirror, image overlay, IP address filtering, low latency mode, multi view mode, Multi-Bitrate (MBR), on-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, polygon privacy mask, saturation control, sharpness control, tone mapping, user access log, Variable Bitrate (VBR), video streaming indicator, white balance, Wide Dynamic Range (WDR), polycarbonate bubble, aluminum housing, NAS-Ready, Lightfinder technology, OptimizedIR |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.56 mm |
| Lens Iris | F/2.0 fixed iris |
| Horizontal Field of View (degree) | 183 |
| Vertical Field of View (degree) | 183 |
| Image Sensor | |
| Type | 6 MP RGB CMOS 1/1.8" |
| Interfaces | |
| Network Interface | LAN |
| Network Protocols | IPv4, IPv6, ICMP, HTTP, HTTPS, SSL, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, DHCP, ARP, SSH, SIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
