Eaton - Eaton Tripp Lite Series 16-Port Serial Console Server, USB Ports (2)
4G LTE, Dual GbE NIC, 16Gb Flash, Desktop/1U Rack, TAA - Console server - 16 ports - 1GbE, RS-232 - 2.4 GHz - 1U - Verizon Wireless, AT&T, Rogers, Telus - TAA Compliant
Eaton
B098-016-V
0037332218070
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 16-Port Serial Console Server, USB Ports (2) - 4G LTE, Dual GbE NIC, 16Gb Flash, Desktop/1U Rack, TAA - console server - TAA Compliant |
| Device Type | Console server |
| Service Provider | Verizon Wireless, AT&T, Rogers, Telus |
| Form Factor | External - 1U |
| Flash Memory | 16 GB |
| Ports Qty | 16 |
| Data Link Protocol | Gigabit Ethernet, RS-232 |
| Frequency Band | 2.4 GHz |
| Mobile Broadband Access | Yes |
| Cellular Protocol | LTE |
| Included Accessories | Rack mount kit, 2 x Wi-Fi antennas, 2 x Cisco straight pinout loopback (black), Cisco rollover pinout loopback (red) |
| Power | AC 120/230 V |
| Power Redundancy | Yes |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17 in x 10 in x 1.8 in |
| Weight | 10.01 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Console server |
| Service Provider | Verizon Wireless, AT&T, Rogers, Telus |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 10 in |
| Height | 1.8 in |
| Weight | 10.01 lbs |
| Enclosure Color | Black |
| Expansion / Connectivity | |

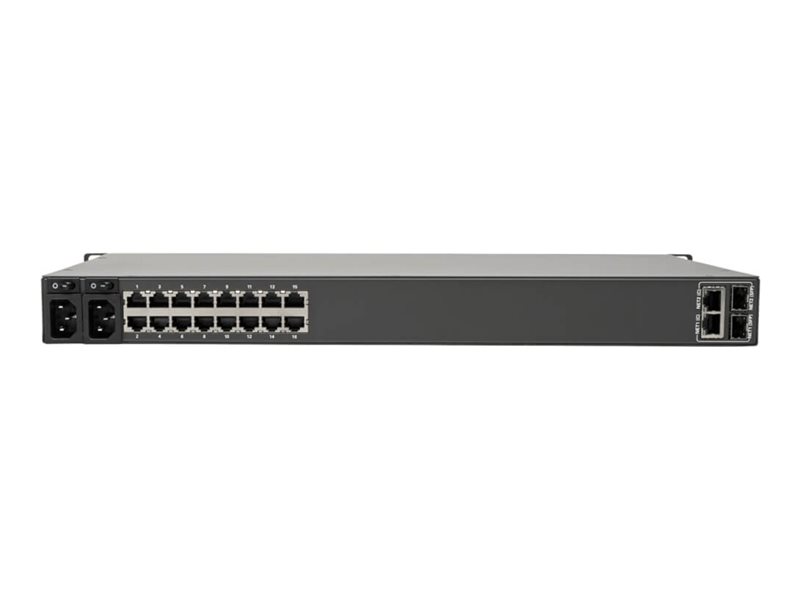

| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 16 x serial - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 2 x - SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 1 x modem - RJ-11 ¦ 4 x antenna - SMA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

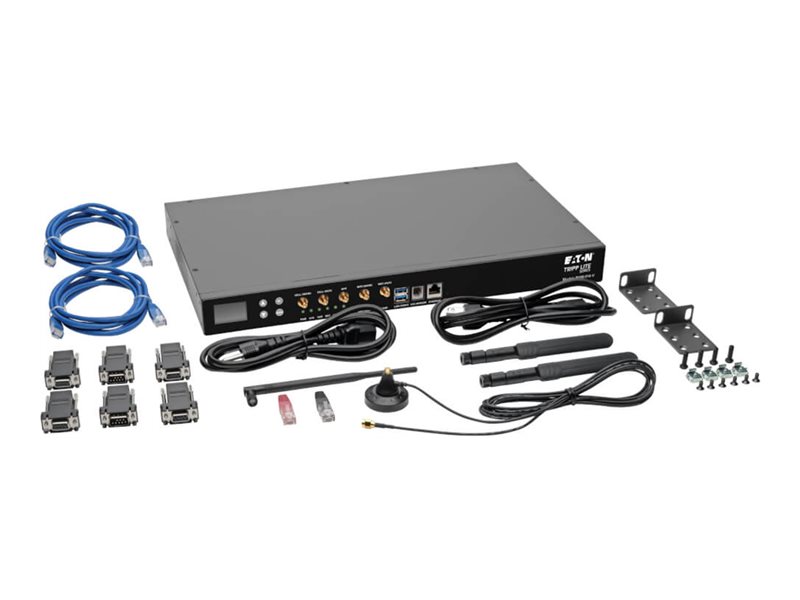

| Included Accessories | Rack mount kit, 2 x Wi-Fi antennas, 2 x Cisco straight pinout loopback (black), Cisco rollover pinout loopback (red) |
| Cables Included | 2 x patch cable - 6 ft ¦ 1 x antenna extension cable - 10 ft ¦ 4 x serial adapter ¦ 2 x crossover adapter |
| Compliant Standards | FIPS 140-2, PCI DSS, SSL |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Ports Qty | 16 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, RS-232 |
| Remote Management Protocol | SNMP, CLI |
| Frequency Band | 2.4 GHz |
| Status Indicators | Port status, power, serial, cellular mode, Wi-Fi |
| Features | Firewall protection, E-mail alert, Access Point operational mode, IPSec Virtual Private Network (VPN), DHCP server, SMS alert, metal housing, Cisco straight pinout, dual SIM support |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Communications | |
| Mobile Broadband Access | Yes |
| Cellular Protocol | LTE |
| Supported Flash Memory Cards | SD Memory Card |
| Processor / Memory / Storage | |
| Flash Memory | 16 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.1 in |
| Shipping Depth | 19.2 in |
| Shipping Height | 3.3 in |
| Shipping Weight | 10.41 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
