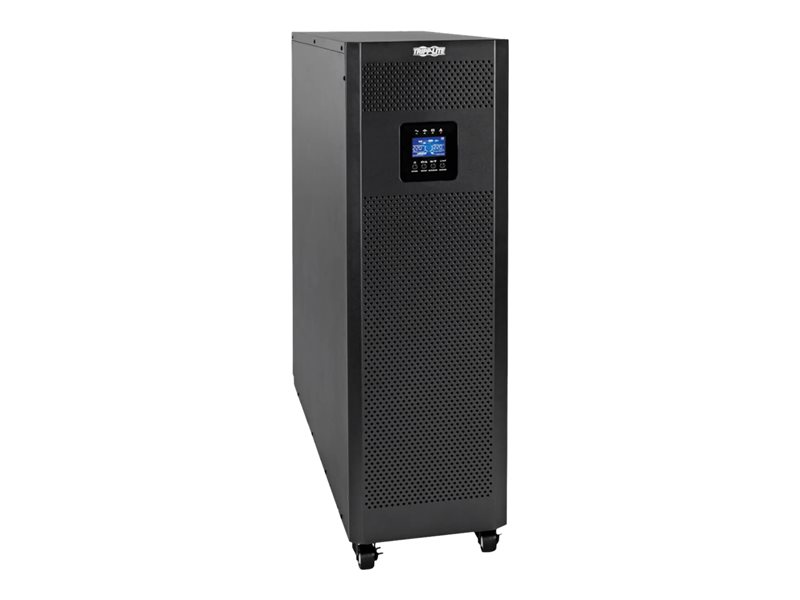

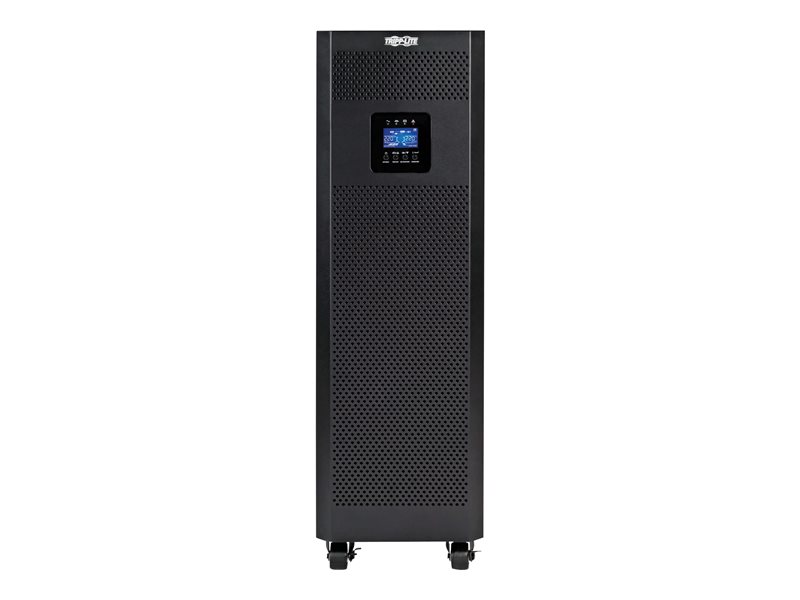

Tripp Lite - Tripp Lite SmartOnLine S3MX Series SmartOnline S3MX Series 3-Phase 380/400/415V 30kVA 27kW On-Line Double-Conversion UPS
UPS - 46.6 A - AC 220/230/240/380/400/415 V - 27 kW - 30000 VA - 3-phase WYE (star) - Ethernet, RS-232 - active PFC
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite SmartOnLine S3MX Series SmartOnline S3MX Series 3-Phase 380/400/415V 30kVA 27kW On-Line Double-Conversion UPS - UPS - 27 kW - 30000 VA |
| Device Type | UPS - active Power Factor Correction (PFC) - external |
| Weight | 584 lbs |
| Input Wiring | 3-phase WYE (star) |
| Input Voltage | AC 220/230/240/380/400/415 V |
| Output Voltage | AC 220/230/240/380/400/415 V ± 1% |
| Power Capacity | 27 kW / 30000 VA |
| Input Connectors | Hardwire |
| Output connectors | Hardwire |
| Networking | Ethernet, RS-232 |
| Remote Management Protocol | SNMP |
| Dimensions (WxDxH) | 11.8 in x 32.1 in x 39.4 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - active Power Factor Correction (PFC) - external |
| Expansion / Connectivity | |

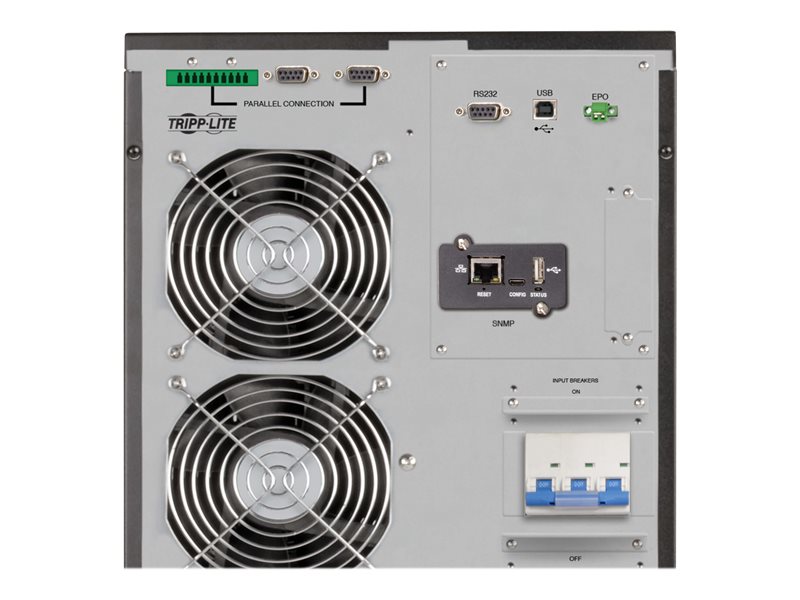

| Interfaces | 1 x EPO (emergency power off) ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Serial cable |
| Features | Double conversion, LCD display, audible alarm, LED indicators, cooling fan, cold-start function, automatic inverter bypass |
| Compliant Standards | IEC 62040-1:2008+A1, EN 62040-1:2008, EN 62040-2:2006, IEC 62040-2:2006, RoHS |
| Networking | |
| Remote Management Interface | Ethernet, RS-232 |
| Remote Management Protocol | SNMP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 60 dBA |
| Battery | |
| Voltage Provided | 240 V |
| Recharge Time | 9 hours |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 220/230/240/380/400/415 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase WYE (star) |
| Input Connectors | Hardwire |
| Power Output Connectors Details | Hardwire |
| Output Voltage | AC 220/230/240/380/400/415 V ± 1% - 50/60 Hz |
| Max Electric Current | 46.6 A |
| Power Capacity | 27 kW / 30000 VA |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Efficiency | 98% Eco mode, 94% online mode |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 3 % |
| Dimensions & Weight | |
| Width | 11.8 in |
| Depth | 32.1 in |
| Height | 39.4 in |
| Weight | 584 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.9 in |
| Shipping Depth | 36.2 in |
| Shipping Height | 47.6 in |
| Shipping Weight | 618.99 lbs |
