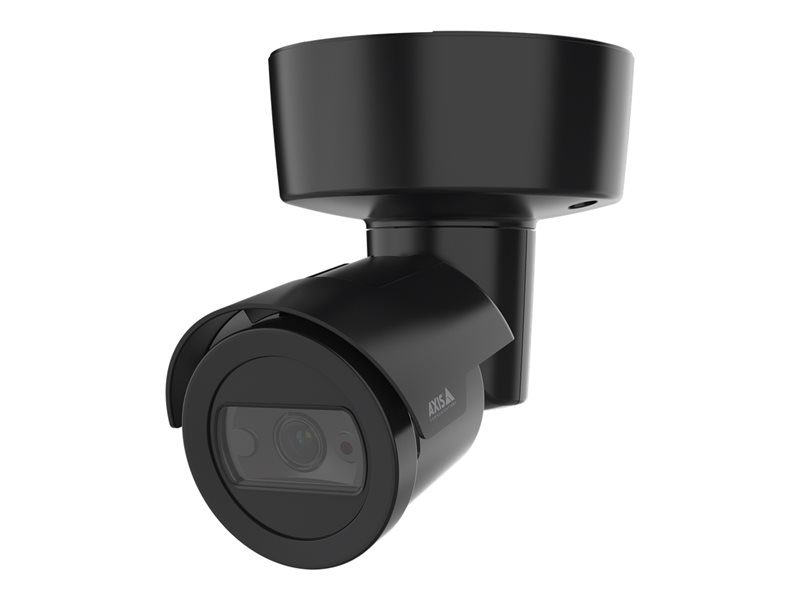

Axis Communications - AXIS M2036-LE
Network surveillance camera - bullet - outdoor - weatherproof - color (Day&Night) - 4 MP - 2688 x 1520 - 1440p - fixed iris - fixed focal - LAN 10/100 - H.264, H.265, MJPEG, MPEG-4, AVC, HEVC, MPEG-H Part 2 - PoE Plus Class 3
Axis Communications
02134-001
07331021073074
N/A
New
Price: $399.61
MSRP: $449.00
Discount off MSRP: 11.00%
Total Available: 256
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS M2036-LE - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - outdoor - weatherproof |
| Dimensions (WxDxH) | 4 in x 6.7 in x 4 in |
| Weight | 17.32 oz |
| Color | Black, NCS S 9000-N |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1440p |
| Optical Sensor Type | PS RGB CMOS - 1/2.7" - 4 MP |
| Minimum Illumination | 0.18 lux - color - F2.1 - 50 IRE ¦ 0.04 lux - B&W - F2.1 - 50 IRE ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.4 mm |
| Focus Adjustment | (min distance 1.6 ft) |
| Lens Iris | F/2.1 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Plus Class 3 |
| Features | Axis Edge Vault, Wide Dynamic Range (WDR), Lightfinder technology, Zipstream technology, remote zoom, secure boot, signed firmware, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, progressive scanning, Adaptive Bitrate (ABR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 90° image rotation, brightness control, color control, compression, contrast control, Corridor mode, exposure control, image mirror, image overlay, motion-adaptive exposure, Privacy Mask Function, sharpness control, text overlay, white balance, digital PTZ function, HTTPs encryption, IP address filtering, password protection, brute force delay protection, centralized certificate management, digest authentication, user access log, VAPIX support, aluminum housing, plastic housing, Power over Ethernet, infrared cut filter, Video Motion Detection Technology, active tampering alarm, Edge Storage |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 10 - 100% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 4 in |
| Depth | 6.7 in |
| Height | 4 in |
| Weight | 17.32 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Torx L-key |
| Compliant Standards | IK08, IP66, IP67, NEMA Type 4X, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, NEMA TS-2, EMC, CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), AS/NZS CISPR 32 Class A, EN 60529, IEC 60068-2, IEC 60529, IEC 62471, IEC/EN 62262, IEC/EN 62368-1, IS13252, KN32 Class A, KN35, NIST SP500-267, RCM, VCCI Class A |
| Color | Black, NCS S 9000-N |
| Power | |
| Power Requirements | PoE Plus Class 3 |
| Power Device | 5 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% RH |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - weatherproof |
| Digital Video Format | H.264, H.265, MJPEG, MPEG-4, AVC, HEVC, MPEG-H Part 2 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Video Modes | 1440p |
| Exposure Range | 1/5 sec - 1/38500 sec |
| Minimum Illumination | 0.18 lux - color - F2.1 - 50 IRE ¦ 0.04 lux - B&W - F2.1 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Frame Rate (max) | 30 frames per second |
| RAM | 512 MB |
| Flash Memory | 1 GB |
| Features | Axis Edge Vault, Wide Dynamic Range (WDR), Lightfinder technology, Zipstream technology, remote zoom, secure boot, signed firmware, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, progressive scanning, Adaptive Bitrate (ABR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 90° image rotation, brightness control, color control, compression, contrast control, Corridor mode, exposure control, image mirror, image overlay, motion-adaptive exposure, Privacy Mask Function, sharpness control, text overlay, white balance, digital PTZ function, HTTPs encryption, IP address filtering, password protection, brute force delay protection, centralized certificate management, digest authentication, user access log, VAPIX support, aluminum housing, plastic housing, Power over Ethernet, infrared cut filter, Video Motion Detection Technology, active tampering alarm, Edge Storage |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.4 mm |
| Lens Iris | F/2.1 fixed iris |
| Min Focus Distance | 1.6 ft |
| Horizontal Field of View (degree) | 130 |
| Vertical Field of View (degree) | 81 |
| Image Sensor | |
| Type | 4 MP PS RGB CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, DNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, RTCP, SOCKS, SSH, LLDP, MQTT, SNMP 1, SNMP 2c, SNMP 3, IGMP, IGMPv2, IGMPv3, DHCP |
