APC - APC NetShelter Rack PDU Advanced

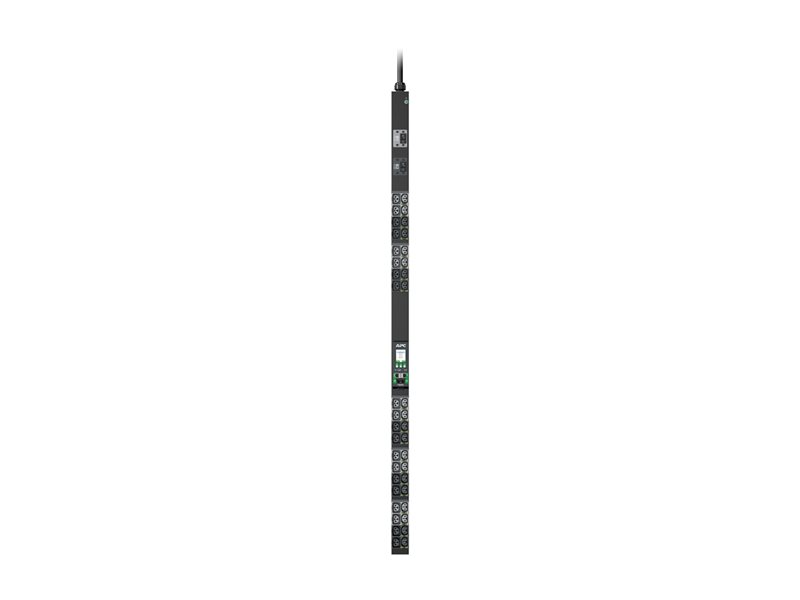

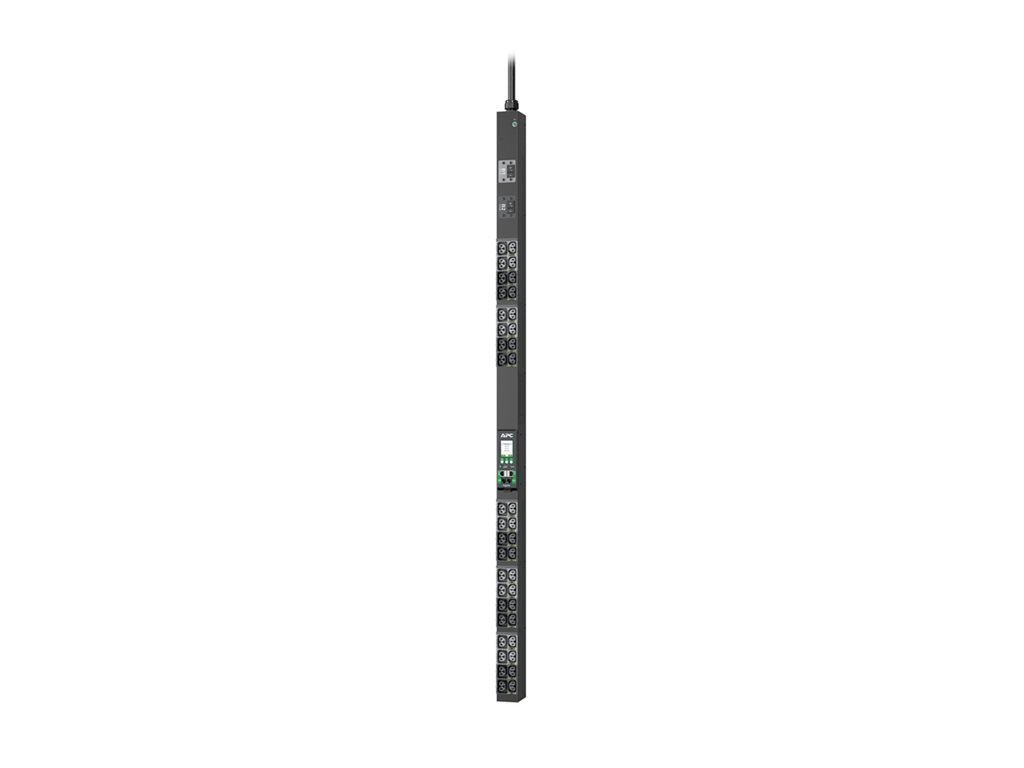

Power distribution unit (rack-mountable) - switched - AC 200-240 V - 5 kW - 5000 VA - 1-phase - Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 40 (20 x IEC 60320 C13/C15, 20 x IEC 60320 C13/C15/C19/C21) - 0U - 10 ft cord - black
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | APC NetShelter Rack PDU Advanced - power distribution unit - switched - 5 kW - 5000 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 16.98 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 200-240 V |
| Output Voltage | AC 208 V |
| Power Capacity | 5 kW / 5000 VA |

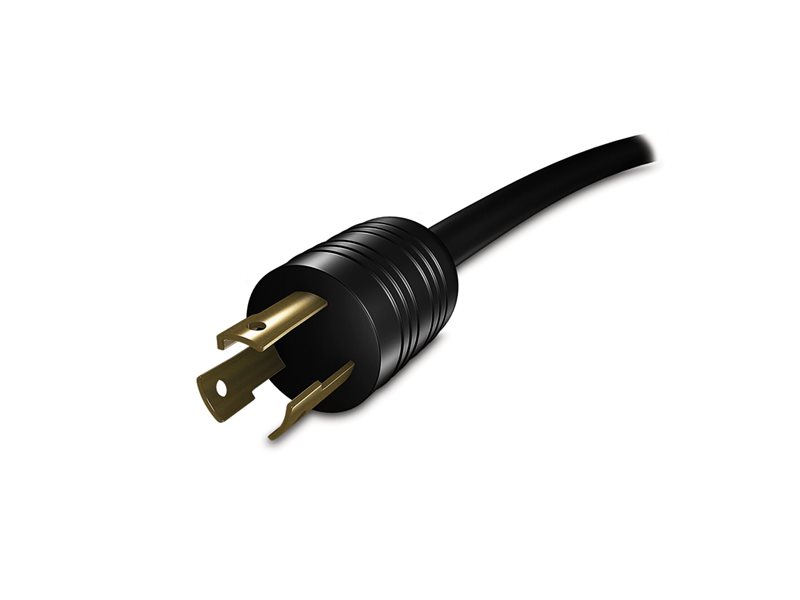

| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 20 x power IEC 60320 C13/C15 ¦ 20 x power IEC 60320 C13/C15/C19/C21 |
| Networking | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Color | Black |

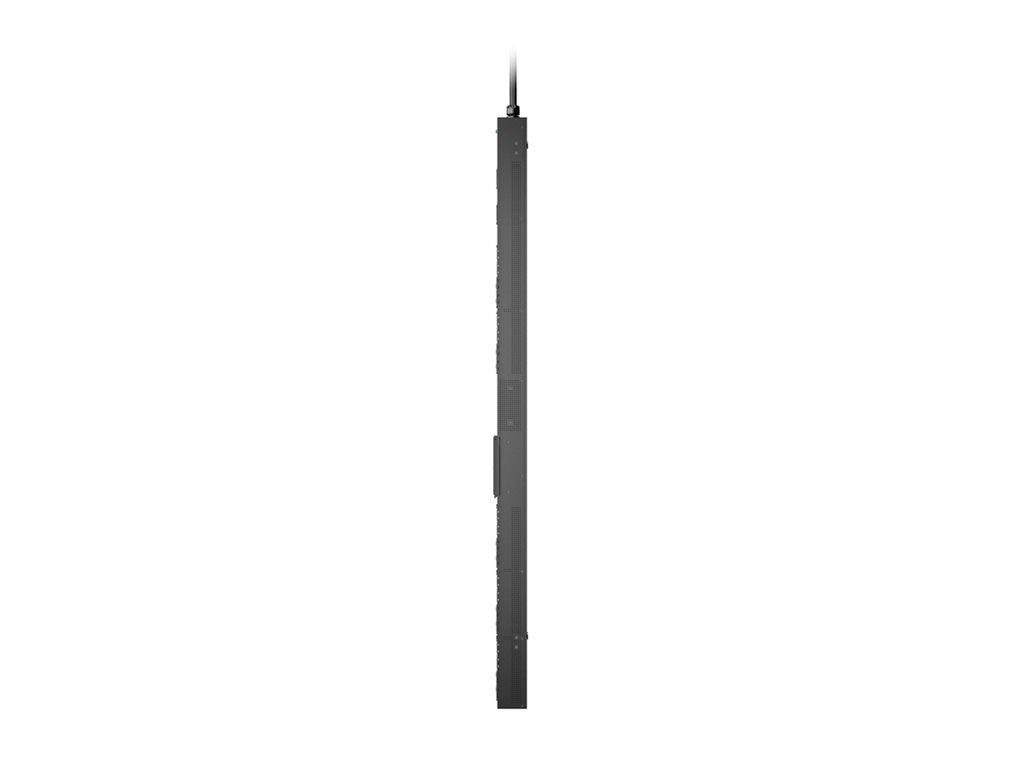

| Dimensions (WxDxH) | 2.2 in x 3 in x 58.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | Management (Gigabit Ethernet) - RJ-45 ¦ Cascading - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |

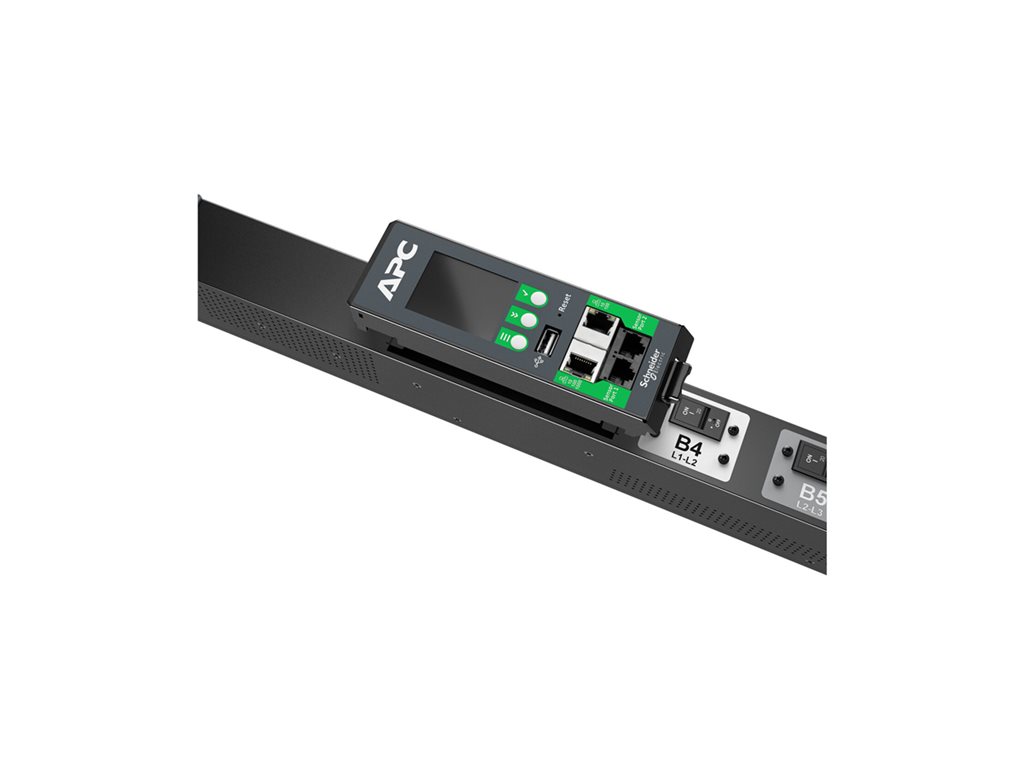

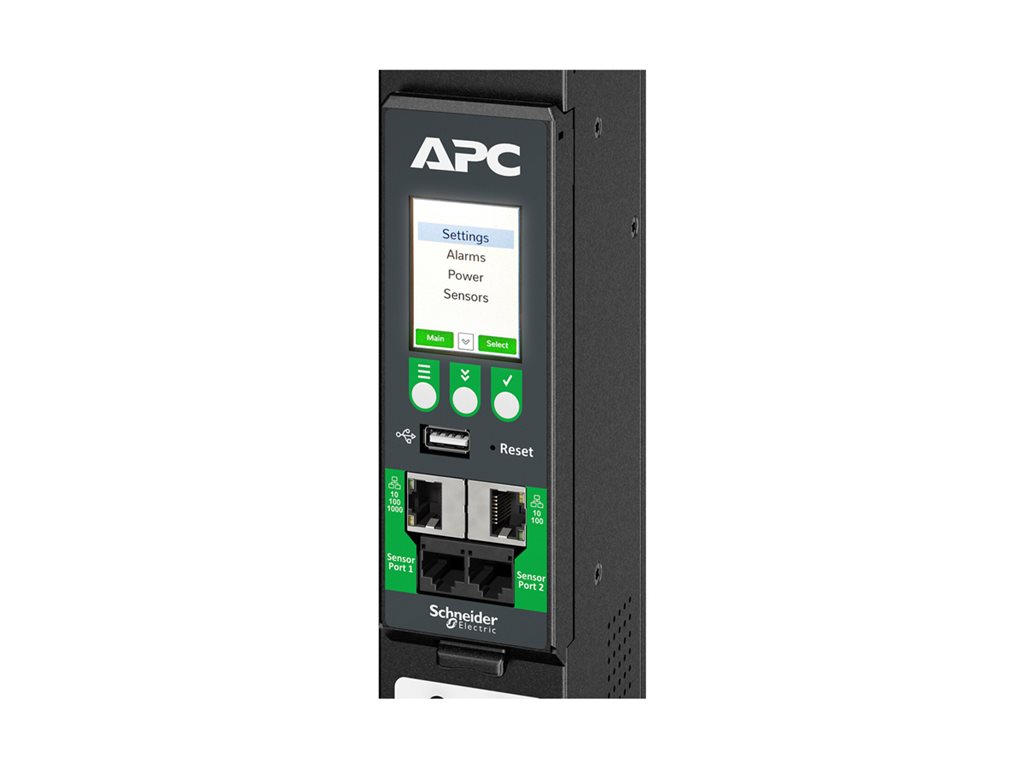

| Features | Vertical orientation, overload protection, LCD display |
| Compliant Standards | FCC Part 15 Subpart B, UL 62368-1, EN 62368-1, UKCA, CSA C22.2 No. 62368-1 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 20 x power IEC 60320 C13/C15 ¦ 20 x power IEC 60320 C13/C15/C19/C21 |
| Output Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Power Capacity | 5 kW / 5000 VA |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 3 in |
| Height | 58.7 in |
| Weight | 16.98 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.2 in |
| Shipping Depth | 4.6 in |
| Shipping Height | 67.7 in |
| Shipping Weight | 21.38 lbs |
