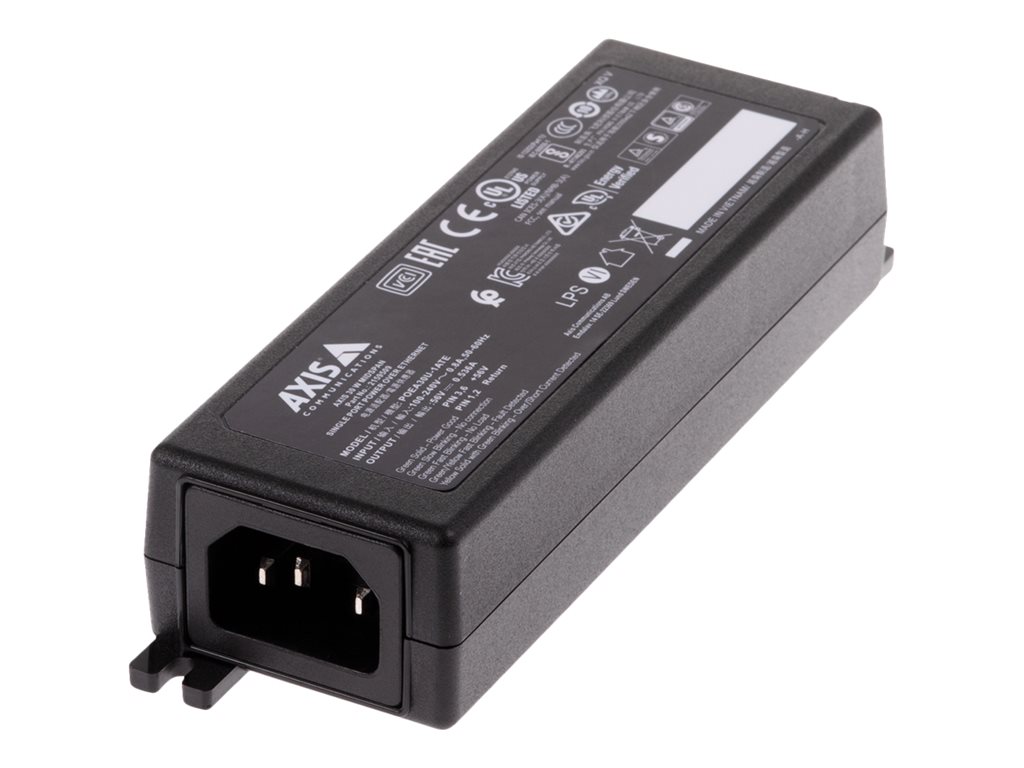

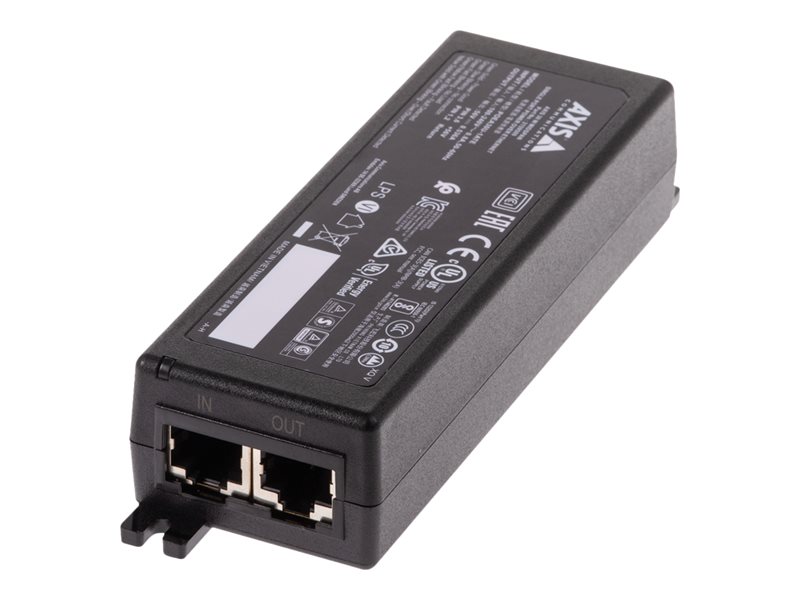

Axis Communications - AXIS Midspan
PoE injector - AC 100-240 V - 30 Watt - output connectors: 1 - Europe - black - for AXIS A1610, C1410, D3110, M4308, P1385, P3818, Q1715, Q3536, Q3538, W400; P37 Series
Axis Communications
02172-002
7331021074057
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS Midspan - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 5.11 oz |
| Localization | Europe |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 56 V |
| Power Capacity | 30 Watt |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output connectors | 1 x RJ-45 |
| Color | Black |
| Dimensions (WxDxH) | 1.8 in x 5.5 in x 1.2 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | AXIS A1610, C1410, D3110, M1134, M1135, M1137, M3015, M3016, M3057, M3058, M3067, M3075, M3116, M3205, M4206, M4308, P1375, P1377, P1378, P1385, P1445, P1447, P1455, P3245, P3247, P3248, P3255, P3818, Q1615, Q1645, Q1647, Q1659, Q1700, Q1715, Q1785, Q1786, Q1952, Q3536, Q3538, W400; P37 Series |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Color | Black |
| Localization | Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable (C13) - external |
| Features | Wall mountable, DIN rail mountable |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, Plug and Play, IS13252, UL 60950-1, UL 62368-1, CCC, EN55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), KCC KN32 Class A, KCC KN35, RCM, AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 56 V |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 5.5 in |
| Height | 1.2 in |
| Weight | 5.11 oz |
| Compatibility Information | |
| Designed For | AXIS A1610-B, C1410, D3110, M1065-L, M1065-LW, M1134, M1134 Barebone, M1135, M1135 Barebone, M1135-E, M1137, M1137 Barebone, M1137-E, M1145-L Network Camera, M2025-LE, M2025-LE Black, M2026-LE Mk II, M3015 Network Camera, M3016 Network Camera, M3057-PLVE Network Camera, M3058-PLVE Network Camera, M3067-P, M3075-V, M3116-LVE, M3205-LVE Network Camera, M4206-LV Network Camera, M4206-V Network Camera, M4308-PLE, P1214 Network Camera, P1214-E Network Camera, P1224-E Network Camera, P1244, P1245, p1254, P1264, P1265 Network Camera, P1375 Network Camera, P1375 Network Camera (Barebone), P1375-E, P1375-E Barebone, P1377, P1377 Barebone, P1377-LE, P1377-LE Barebone, P1378 Network Camera, P1378 Network Camera (Barebone), P1378-LE Network Camera, P1385-E, P1445-LE, P1447-LE, P1448-LE, P1455-LE, P1455-LE-3 License Plate Verifier Kit, P3227-LV Network Camera, P3227-LVE Network Camera, P3228-LV Network Camera, P3228-LVE Network Camera, P3245-LV Network Camera, P3245-LVE Network Camera, P3245-V Network Camera, P3245-VE Network Camera, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V Network Camera, P3367-VE Network Camera, P3374-V Network Camera, P3375-LV Network Camera, P3375-LVE Network Camera, P3375-V Network Camera, P3375-VE Network Camera, P3818-PVE, P3904-R Mk II Network Camera, P3905-R Mk II Network Camera, P3915-R Mk II Network Camera, Q1615 Mk III, Q1615 Mk III Barebone, Q1615-LE Mk III, Q1645, Q1645-LE Network Camera, Q1647, Q1647-LE, Q1659 Barebone, Q1659 Network Camera, Q1700-LE License Plate Camera, Q1715, Q1785-LE, Q1786-LE, Q1952-E, Q3536-LVE, Q3538-LVE, Q3615-VE Network Camera, Q3617-VE Network Camera, Q3709-PVE Network Camera, W400 ¦ AXIS P37 Series P3727-PLE, P3737-PLE |
