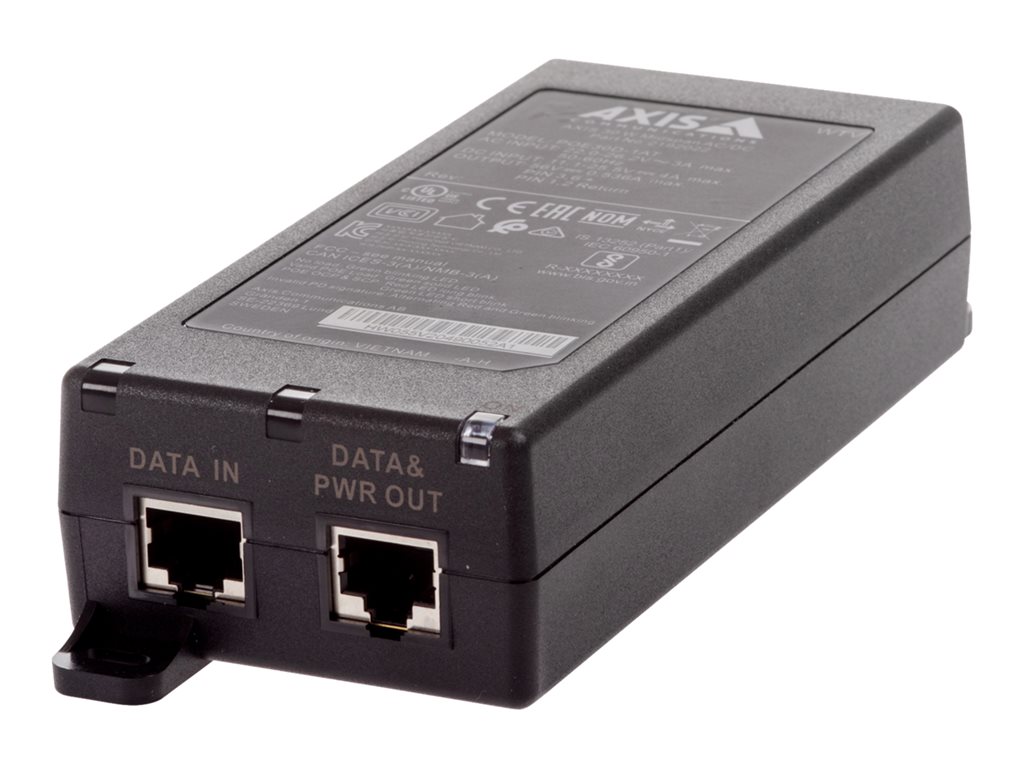

Axis Communications - AXIS Midspan
PoE injector - AC 24 / DC 10-28 V - 30 Watt - output connectors: 1 - black - for AXIS A1610-B, C1410, D3110, P1385-E, P1455-LE, P1455-LE-3, Q1952-E, W400; Q60 Series
Axis Communications
02208-001
7331021074712
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS Midspan - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 8.22 oz |
| Input Voltage | AC 24 / DC 10-28 V |
| Output Voltage | DC 56 V |
| Power Capacity | 30 Watt |
| Input Connectors | 1 |
| Output connectors | 1 x RJ-45 |
| Color | Black |
| Dimensions (WxDxH) | 2.6 in x 6.5 in x 1.5 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | AXIS A1610-B, C1410, D3110, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q1952-E, W400; Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, Plug and Play, EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EAC, IS13252, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, KCC KN32 Class A, KCC KN35, UL 62368-1 |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Power Device | |
| Input Voltage | AC 24 / DC 10-28 V |
| Input Connectors | 1 |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 56 V |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 6.5 in |
| Height | 1.5 in |
| Weight | 8.22 oz |
| Compatibility Information | |
| Designed For | AXIS A1610-B, C1410, D3110, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q1952-E, W400 ¦ AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz |
