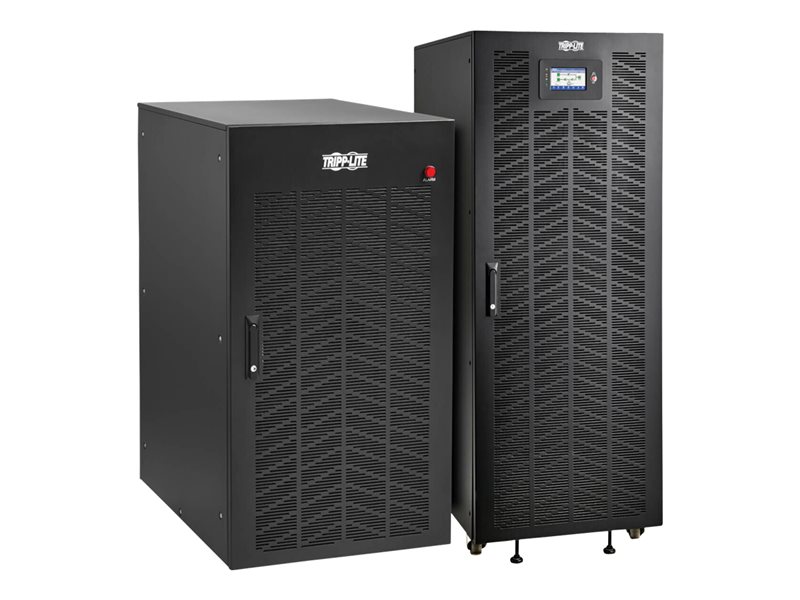

Tripp Lite - Tripp Lite 3-Phase 208V UPS + Input Isolation Transformer Kit
480V Delta to 208V Wye, 100kVA/kW, External Batteries Required - UPS - AC 120/127/208/220 V - 100 kW - 100000 VA - 3-phase WYE (star) - RS-232, USB, serial - active PFC - with S3MT-100K480V 3-Phase100kVA Input IsolationTransformer - for P/N: S3M100K
Tripp Lite
S3M100K-100K4T
0037332253293
N/A
New
Price: $34,705.23
MSRP: $62,987.40
Discount off MSRP: 44.90%
Total Available: 0
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite 3-Phase 208V UPS + Input Isolation Transformer Kit - 480V Delta to 208V Wye, 100kVA/kW, External Batteries Required - UPS - 100 kW - 100000 VA - with S3MT-100K480V 3-Phase100kVA Input IsolationTransformer |
| Device Type | UPS - active Power Factor Correction (PFC) - external |
| Input Wiring | 3-phase WYE (star) |
| Input Voltage | AC 120/127/208/220 V |
| Output Voltage | AC 120/127/208/220 V ± 1% |
| Power Capacity | 100 kW / 100000 VA |
| Input Connectors | Hardwire |
| Output connectors | Hardwire |
| Networking | USB, RS-232, serial |
| Remote Management Protocol | SNMP |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 2-year warranty |
| Bundled with | S3MT-100K480V 3-Phase100kVA Input IsolationTransformer |
| Designed For | P/N: S3M100K |
| General | |
| Device Type | UPS - active Power Factor Correction (PFC) - external |
| Bundled with | S3MT-100K480V 3-Phase100kVA Input IsolationTransformer |
| Expansion / Connectivity | |
| Interfaces | 1 x EPO (emergency power off) ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | RS-232 cable 5 ft ¦ Parallel cable 5 ft ¦ USB cable 5 ft |
| Features | Integrated electrical grounding, built-in 5" touch screen display, double conversion, LCD display, LED indicators, audible alarm, overvoltage correction, undervoltage correction, cooling fan, cold-start function |
| Compliant Standards | CSA, FCC CFR47 Part 15 A, UL 1778, RETIE |
| Networking | |
| Remote Management Interface | USB, RS-232, serial |
| Remote Management Protocol | SNMP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Sound Emission | 75.6 dBA |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120/127/208/220 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase WYE (star) |
| Input Connectors | Hardwire |
| Power Output Connectors Details | Hardwire |
| Output Voltage | AC 120/127/208/220 V ± 1% - 50/60 Hz |
| Power Capacity | 100 kW / 100000 VA |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.5% Eco mode, 93% AC mode |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 3 % |
| Compatibility Information | |
| Designed For | P/N: S3M100K |
| Sustainability Information | |
| ENERGY STAR | Yes |
