Panoramic camera - dome - color - 8.3 MP - 4320 x 1920 - 4K - fixed focal - audio - GbE - MJPEG, H.264, AVC - PoE Class 3
Main Specifications | |
---|---|

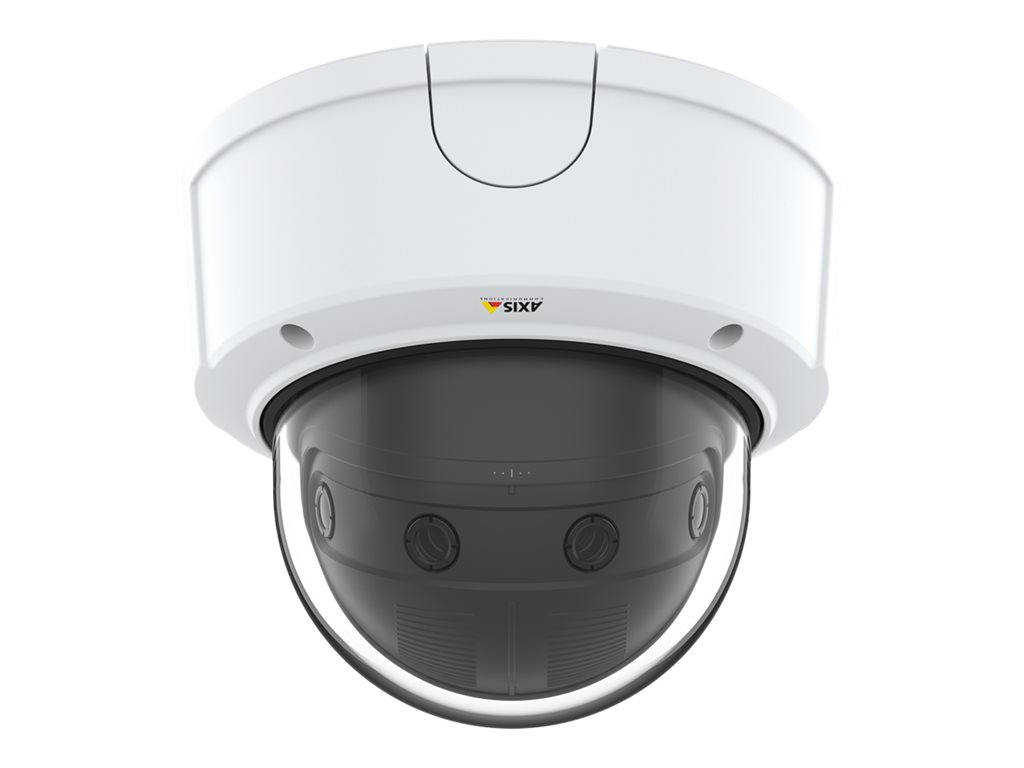

Product Description | AXIS P3807-PVE Network Camera - panoramic camera - dome |
Device Type | Panoramic camera - fixed - dome |
Audio | Yes |
Dimensions (WxDxH) | 8.1 in 6.5 in |
Weight | 3.53 lbs |
Color | White |
Connectivity Technology | Wired |
Camera | Color |
Max Resolution | 4320 x 1920 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Video Modes | 4K |
Optical Sensor Type | RGB BSI CMOS - 1/2.9" - 8.3 MP |
Minimum Illumination | 0.17 lux - color - F2.0 ¦ 0.05 lux - B&W - F2.0 |
Focal Length Control | Fixed focal |
Focal Length | 3.2 mm |
Lens Iris | F/2.0 |
Panning Range (degree) | -180 to +180 |
Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
Voltage | PoE Class 3 |
Features | Sharpness control, white balance, saturation control, brightness control, contrast control, infrared cut filter, Privacy Mask Function, Lightfinder technology, active tampering alarm, password protection, noise reduction, Zipstream technology, panoramic view, image overlay, exposure control, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, HTTPs encryption |
Manufacturer Warranty | 3-year warranty |
Environmental Parameters (operating) | -22 °F - 122 °F; 10 - 100% (non-condensing) relative humidity |
General | |
Device Type | Panoramic camera |
Audio Support | Yes |
Form Factor | Dome |
Connectivity Technology | Wired |
Width | 8.1 in |
Height | 6.5 in |
Weight | 3.53 lbs |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Miscellaneous | |
Included Accessories | Mounting bracket, AXIS U-shape conduit adapter, weathershield, Resistorx L-key, cable gasket |
Compliant Standards | EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IP67, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, IEC EN60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEEE 802.1x |
Color | White |
Power | |
Power Requirements | PoE Class 3 |
Power Device | 12.9 Watt |
Software / System Requirements | |
Software Included | Windows decoder 1-user license |
Environmental Parameters | |
Min Operating Temperature | -22 °F |
Max Operating Temperature | 122 °F |
Relative Humidity (operating) | 10 - 100% (non-condensing) |
Camera | |
Type | Color - fixed |
Digital Video Format | MJPEG, H.264, AVC |
Max Digital Video Resolution | 4320 x 1920 |
Motion Detection | Yes |
Video Modes | 4K |
Exposure Range | 1/10 sec - 1/33500 sec |
Minimum Illumination | 0.17 lux - color - F2.0 ¦ 0.05 lux - B&W - F2.0 |
Digital Video Capture Resolution | 480 x 270, 4320 x 1920 |
Frame Rate (max) | 30 frames per second |
RAM | 1024 MB |
Flash Memory | 512 MB |
Features | Sharpness control, white balance, saturation control, brightness control, contrast control, infrared cut filter, Privacy Mask Function, Lightfinder technology, active tampering alarm, password protection, noise reduction, Zipstream technology, panoramic view, image overlay, exposure control, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, HTTPs encryption |
Lens Construction | |
Type | Fixed focal |
Focal Length | 3.2 mm |
Lens Iris | F/2.0 |
Horizontal Field of View (degree) | 180 - 90 |
Image Sensor | |
Type | 8.3 MP RGB BSI CMOS 1/2.9" |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Network Protocols | DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP, LLDP |
Panning | |
Range (degree) | -180 to +180 |
