Axis Communications - AXIS M3077-PLVE

Network panoramic camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 6 MP - 2016 x 2016 - fixed iris - fixed focal - audio - MJPEG, H.264, H.265 - PoE Class 3

Axis Communications
02018-001
7331021070813
N/A
New

Price: $693.14

MSRP: $749.00
Total Available: 0

Product Description

Additional Details

What's Included

Specifications

Main Specifications

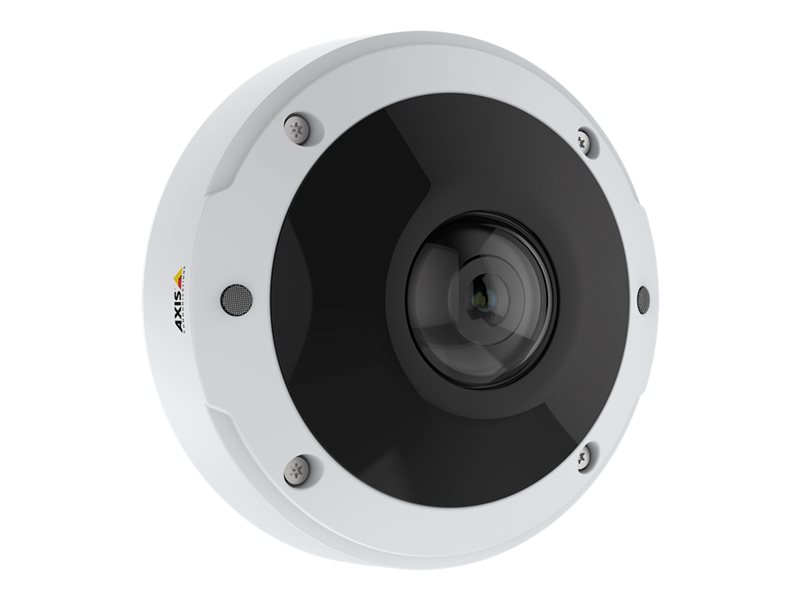

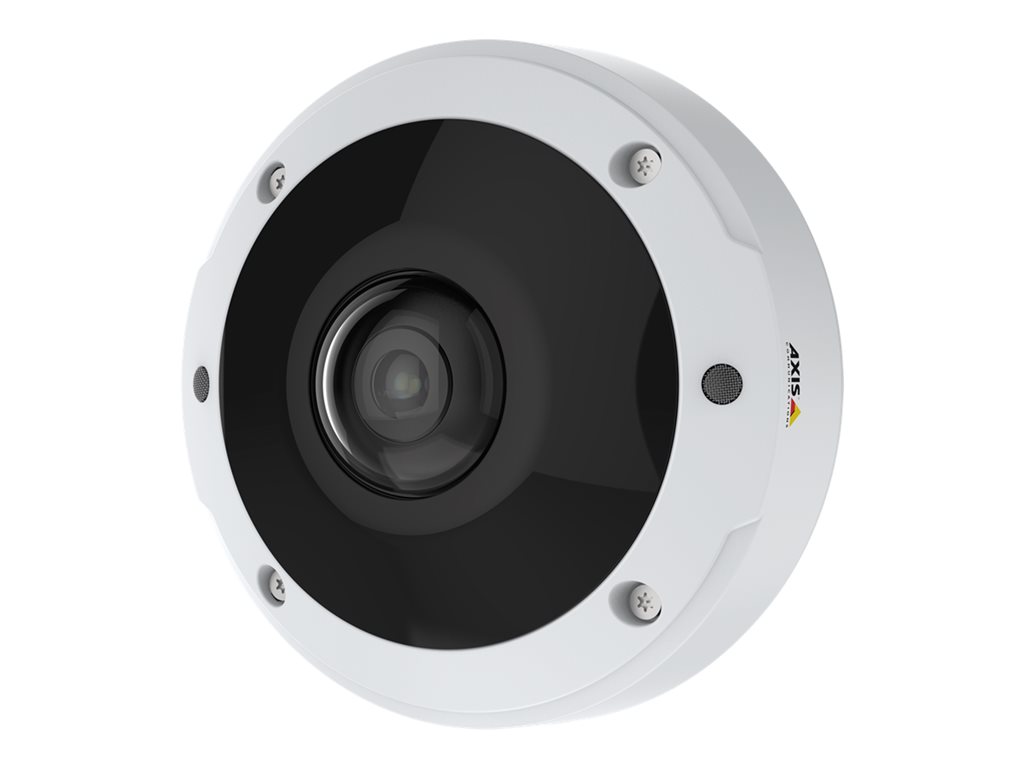

Product Description AXIS M3077-PLVE - network panoramic camera - dome
Device Type Network panoramic camera - fixed - dome - outdoor - vandal / weatherproof
Audio Yes: two-way audio capability, built-in microphone
Dimensions (WxDxH) 5.9 in x 5.9 in x 2.6 in
Weight 24.69 oz
Color White
Connectivity Technology Wired
Camera Color - Day&Night
Max Resolution 2016 x 2016
Frame Rate (max) 60 frames per second
Motion Detection Yes
Optical Sensor Type RGB CMOS - 1/1.8" - 6 MP
Minimum Illumination 0.16 lux - color - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR
Focal Length Control Fixed focal
Focal Length 1.56 mm
Lens Iris F/2.0 - fixed iris
Voltage PoE Class 3
Features Sharpness control, white balance, saturation control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), lens preset positioning, Panorama Capture, NAS-Ready, auto low-light correction, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Double Panorama Capture, tone correction, OptimizedIR, auto gain control, Access Control, image overlay, exposure control, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, exposure zone, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, HTTPs encryption, signed firmware, secure boot, Corridor mode, 360° field of view, day/night threshold, compression, text overlay, polygon privacy mask
Manufacturer Warranty 5-year warranty
Environmental Parameters (operating) -40 °F - 122 °F; 10 - 100% (condensing) relative humidity
General
Device Type Network panoramic camera
Audio Support Yes: two-way audio capability, built-in microphone
Audio Formats PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Form Factor Dome
Connectivity Technology Wired
Width 5.9 in
Depth 5.9 in
Height 2.6 in
Weight 24.69 oz
Expansion / Connectivity
Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Included Accessories Mounting bracket, cable gaskets, drill hole template, I/O connector, connector guard, cable hole lid, view protector, Resitorx TR20 screw bit
Compliant Standards EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, KN35, USGv6, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, IEC 60721-3-5 Class 5M3, IEC/EN 62262, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, NEMA 4, ICES-3(A)/NMB-3(A), IPv6, NEMA TS-2-2016
Color White
Power
Power Requirements PoE Class 3
Power Device 8 Watt
Software / System Requirements
Software Included AXIS Camera Station, Windows decoder 1-user license, AXIS Companion, AXIS Video Motion Detection, AXIS Device Manager
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 122 °F
Relative Humidity (operating) 10 - 100% (condensing)
Camera
Type Color - Day&Night - fixed - outdoor - vandal / weatherproof
Digital Video Format MJPEG, H.264, H.265
Max Digital Video Resolution 2016 x 2016
Motion Detection Yes
Exposure Range 1 sec - 1/16000 sec
Minimum Illumination 0.16 lux - color - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR
Infrared LEDs Yes
Infrared Distance 66 ft
Digital Video Capture Resolution 384 x 288, 2560 x 1920, 1920 x 1440, 2560 x 1440, 160 x 160, 2016 x 2016, 256 x 144, 192 x 72, 2368 x 1184
Frame Rate (max) 60 frames per second
RAM 1 GB
Flash Memory 512 MB
Features Sharpness control, white balance, saturation control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), lens preset positioning, Panorama Capture, NAS-Ready, auto low-light correction, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Double Panorama Capture, tone correction, OptimizedIR, auto gain control, Access Control, image overlay, exposure control, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, exposure zone, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, HTTPs encryption, signed firmware, secure boot, Corridor mode, 360° field of view, day/night threshold, compression, text overlay, polygon privacy mask
Lens Construction
Type Fixed focal
Focal Length 1.56 mm
Lens Iris F/2.0 fixed iris
Horizontal Field of View (degree) 183
Vertical Field of View (degree) 183
Image Sensor
Type 6 MP RGB CMOS 1/1.8"
Interfaces
Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, SIP, LLDP, USGv6, MQTT
