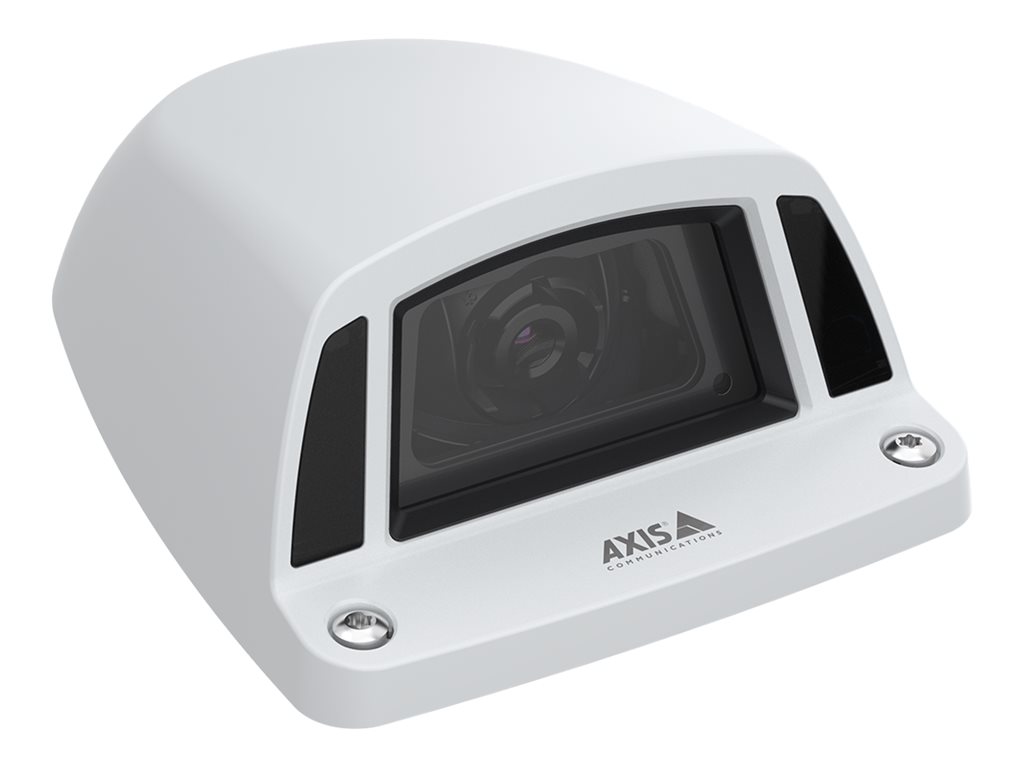

Axis Communications - AXIS P3925-LRE
Network surveillance camera - pan / tilt - color (Day&Night) - 1920 x 1080 - 1080p - M12 mount - fixed iris - fixed focal - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 - PoE Class 3
Axis Communications
02090-001
7331021072442
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS P3925-LRE - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt |
| Dimensions (WxDxH) | 4.6 in x 6.3 in x 2.5 in |
| Weight | 27.16 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 45 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | RGB CMOS - 1/2.9" |
| Minimum Illumination | 0.07 lux - color - F1.9 - 30 IRE ¦ 0.14 lux - color - F1.9 - 50 IRE ¦ 0.02 lux - B&W - F1.9 - 30 IRE ¦ 0.04 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 6 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/1.9 - fixed iris |
| Panning Range (degree) | -20 to +20 |
| Tilting Range (degree) | 0 to 15 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Electronic Image Stabilizer (EIS), Lightfinder technology, digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Forensic WDR, IP address filtering, exposure zone, guard tour, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), defogging, compression |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 131 °F; 10 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 4.6 in |
| Depth | 6.3 in |
| Height | 2.5 in |
| Weight | 27.16 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Drill hole template, lens tool, Resistorx L-key, masking kit |
| Compliant Standards | EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, FCC Part 15 B Class A, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, EN 50121-3-2, IS13252, IEC 62471, EN 50498, EN 45545-2, KN35, EN 50155, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, ISO 20653, IEEE 802.3af, IEEE 802.3at, IEC 60721-3-5 Class 5M3, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, IP6K9K, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, EN 50155:2017 Class OT2/ST2, ICES-3(A)/NMB-3(A), UN ECE R118, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP67, ECE-R10 Rev.6 (E approval), IEC/EN 62262 IK10+ |
| Power | |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 10 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 2 sec - 1/33500 sec |
| Minimum Illumination | 0.07 lux - color - F1.9 - 30 IRE ¦ 0.14 lux - color - F1.9 - 50 IRE ¦ 0.02 lux - B&W - F1.9 - 30 IRE ¦ 0.04 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Video Capture | 1920 x 1080 @ 30 fps ¦ 1280 x 960 @ 45 fps |
| Still Image Capture Resolution | 1080p |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Electronic Image Stabilizer (EIS), Lightfinder technology, digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Forensic WDR, IP address filtering, exposure zone, guard tour, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), defogging, compression |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 6 mm |
| Lens Iris | F/1.9 fixed iris |
| Horizontal Field of View (degree) | 56 |
| Vertical Field of View (degree) | 30 |
| Image Sensor | |
| Type | RGB CMOS 1/2.9" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT |
| Panning | |
| Range (degree) | -20 to +20 |
| Tilting | |
| Range (degree) | 0 to 15 |
