Network surveillance camera - PTZ - dome - outdoor - color (Day&Night) - 1920 x 1080 - 1080p - auto iris - LAN 10/100 - MJPEG, H.264, H.265
| Main Specifications | |
|---|---|

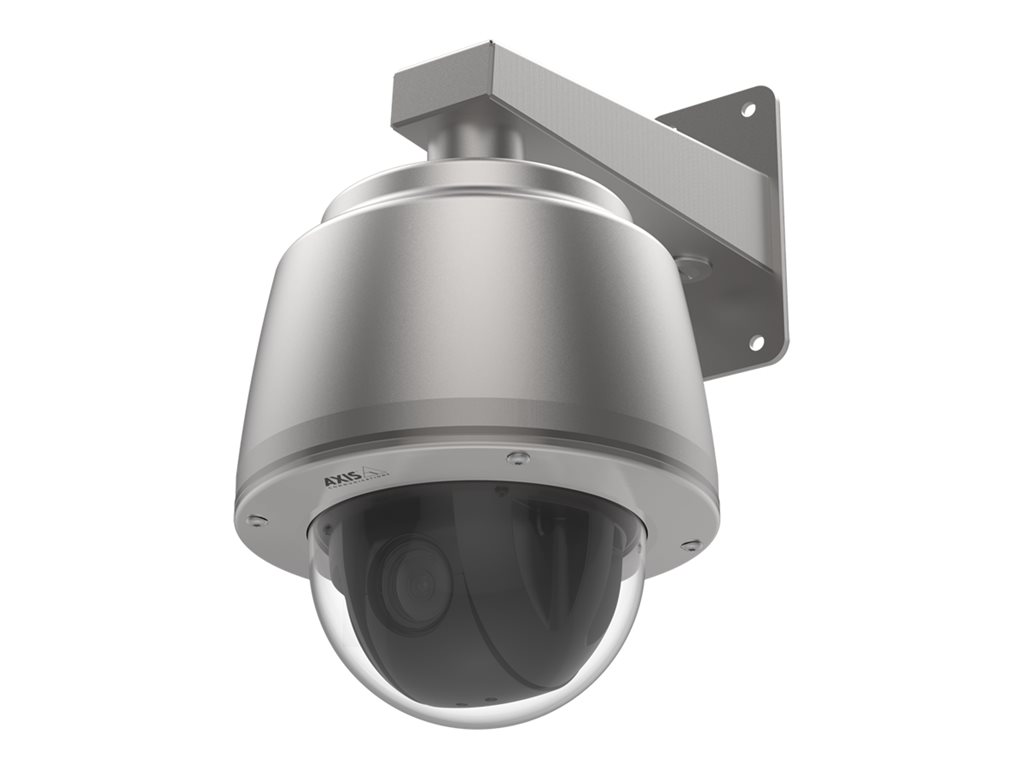

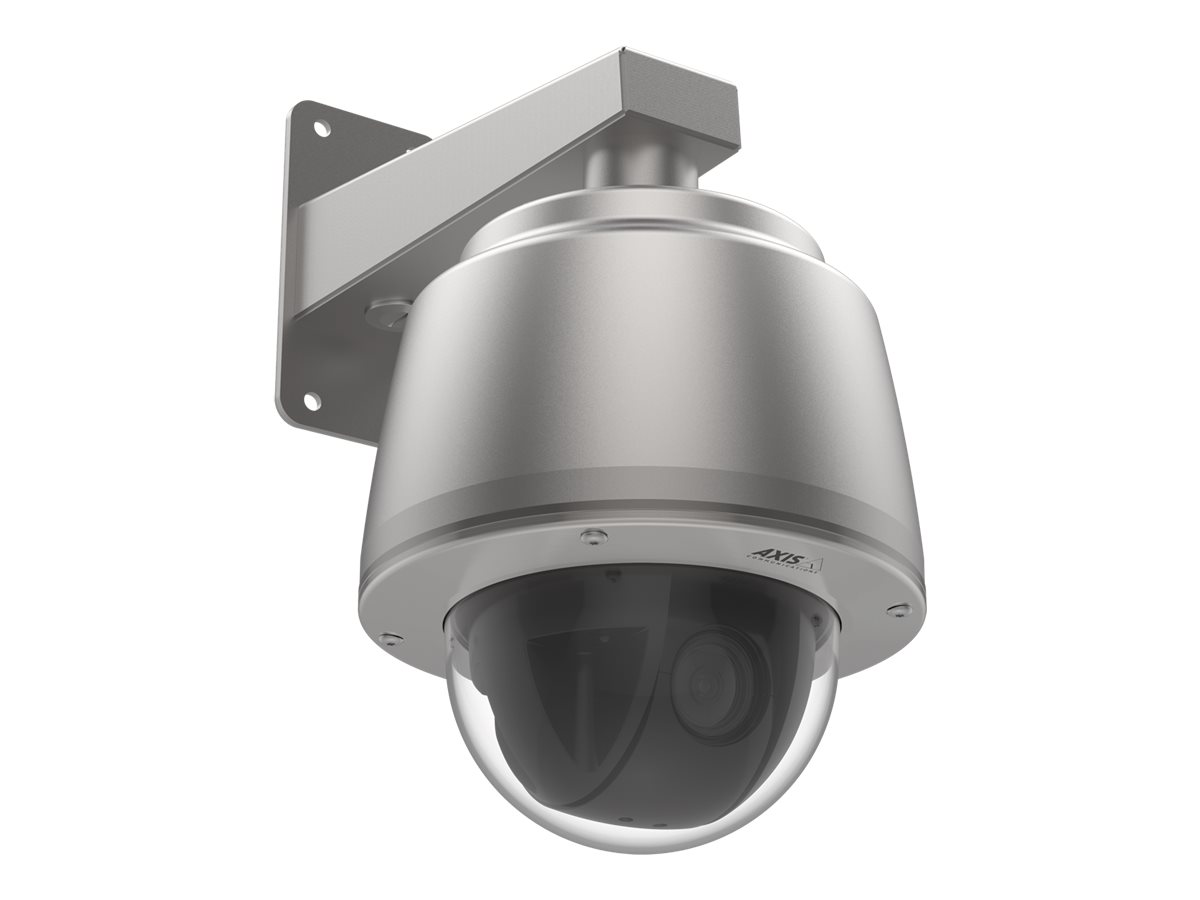

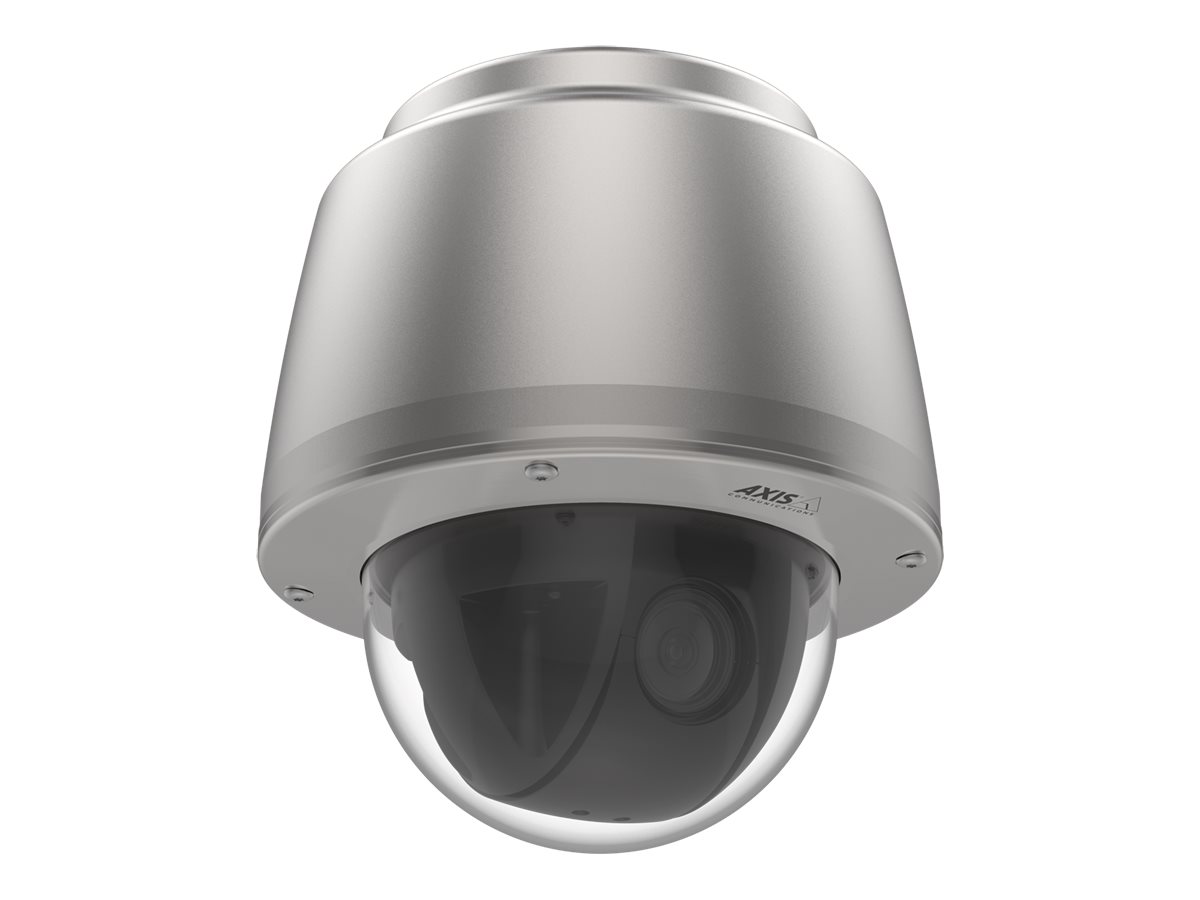

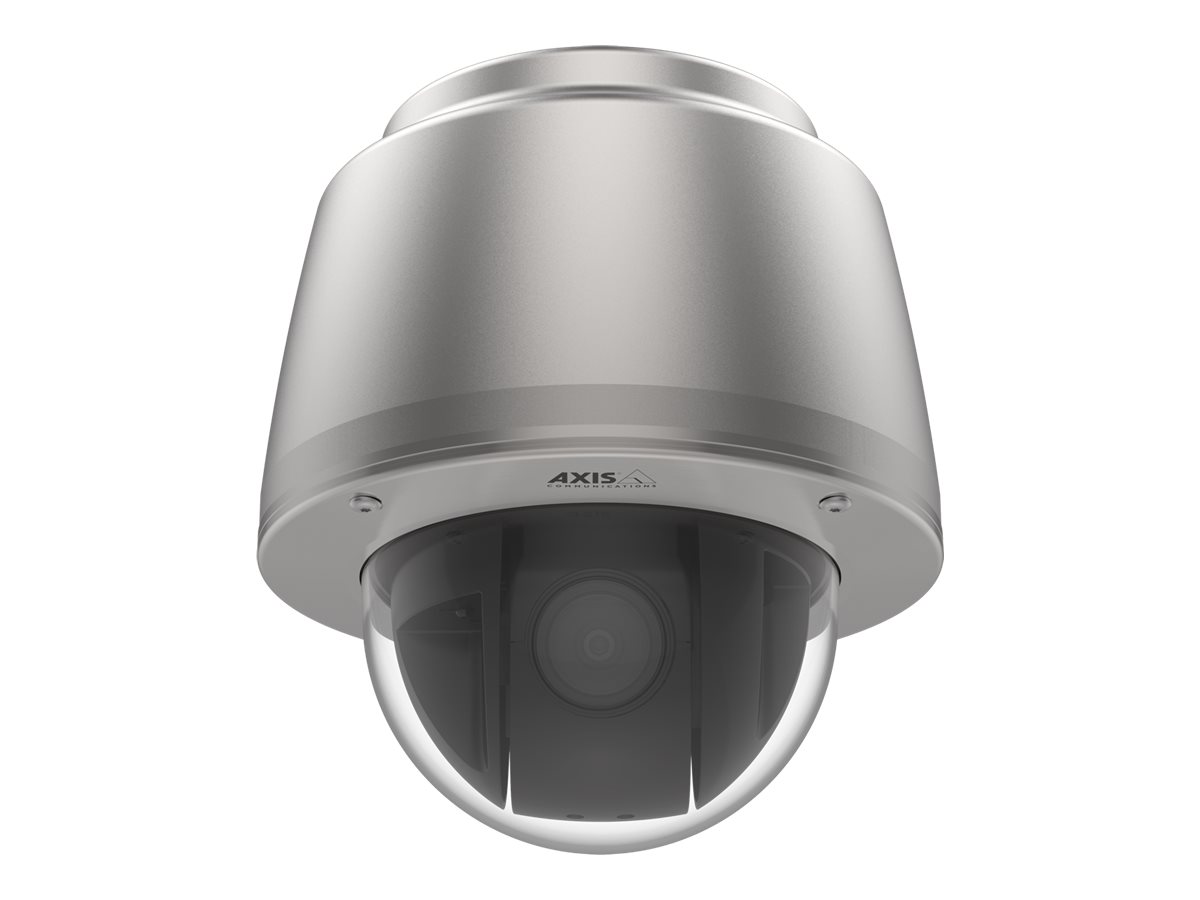

| Product Description | AXIS Q6075-SE - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt / zoom - dome - outdoor |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 8.8 in x 8.8 in x 10.1 in |
| Weight | 13.23 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 40 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | PS CMOS - 1/2.8" |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE ¦ 0.15 lux - color - F1.6 - 50 IRE ¦ 0.002 lux - B&W - F1.6 - 30 IRE ¦ 0.003 lux - B&W - F1.6 - 50 IRE |
| Focal Length | 4.25 mm - 170 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.6-4.95 - auto iris |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 220 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Features | Backlight Compensation (BLC), sharpness control, white balance, color control, brightness control, Wide Dynamic Range (WDR), Highlight Compensation (HLC), 256 preset positions, notification picture to E-mail, password protection, Variable Bitrate (VBR), Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, digest authentication, IP address filtering, electronic image stabilization, exposure zone, Active Gatekeeper Basic Analytics, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, HTTPs encryption, auto defogging, focus recall, 60Hz frame rate, signed firmware, secure boot, TPM 2.0 module, ONVIF (Profile T) support, Adaptive Bitrate (ABR), autotracking 2, PTZ ready, TLS encryption protocol, compression, text overlay, polygon privacy mask |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 10 - 100% (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 8.8 in |
| Depth | 8.8 in |
| Height | 10.1 in |
| Weight | 13.23 lbs |
| Localization | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Russian, Spanish, Japanese, Korean |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | AXIS T8607 Media Converter Switch, IP68-rated cable (7 m) |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IP68, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, EN 14404, RCM, MIL-STD 810G 509.5, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, SAE 316L, UNS S31603, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, CAD ICES-3(A)/NMB3(A), EN 62236-4, NIST SP500-267, IEC/EN 62262 IK10, IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9) |
| Power | |
| Power Device | Power supply DC 24 V 65 Watt |
| Software / System Requirements | |
| Software Included | AXIS Camera Station, Windows decoder 1-user license, AXIS Companion, AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard, AXIS Object Analytics |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 1/3 sec - 1/11000 sec |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE ¦ 0.15 lux - color - F1.6 - 50 IRE ¦ 0.002 lux - B&W - F1.6 - 30 IRE ¦ 0.003 lux - B&W - F1.6 - 50 IRE |
| Video Capture | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), sharpness control, white balance, color control, brightness control, Wide Dynamic Range (WDR), Highlight Compensation (HLC), 256 preset positions, notification picture to E-mail, password protection, Variable Bitrate (VBR), Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, digest authentication, IP address filtering, electronic image stabilization, exposure zone, Active Gatekeeper Basic Analytics, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, HTTPs encryption, auto defogging, focus recall, 60Hz frame rate, signed firmware, secure boot, TPM 2.0 module, ONVIF (Profile T) support, Adaptive Bitrate (ABR), autotracking 2, PTZ ready, TLS encryption protocol, compression, text overlay, polygon privacy mask |
| Lens Construction | |
| Optical Zoom | 40 x |
| Focal Length | 4.25 mm - 170 mm |
| Lens Iris | F/1.6-4.95 auto iris |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2 - 65.1 |
| Vertical Field of View (degree) | 1.18 - 39.1 |
| Image Sensor | |
| Type | PS CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, NTCIP, USGv6, MQTT |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 450 |
| Tilting | |
| Range (degree) | 220 |
| Speed (degree/sec) | Up to 450 |
