Network surveillance camera - color (Day&Night) - 1280 x 720 - 720p - CS-mount - auto iris - vari-focal - audio - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 8 - 28 V / PoE
| Main Specifications | |
|---|---|

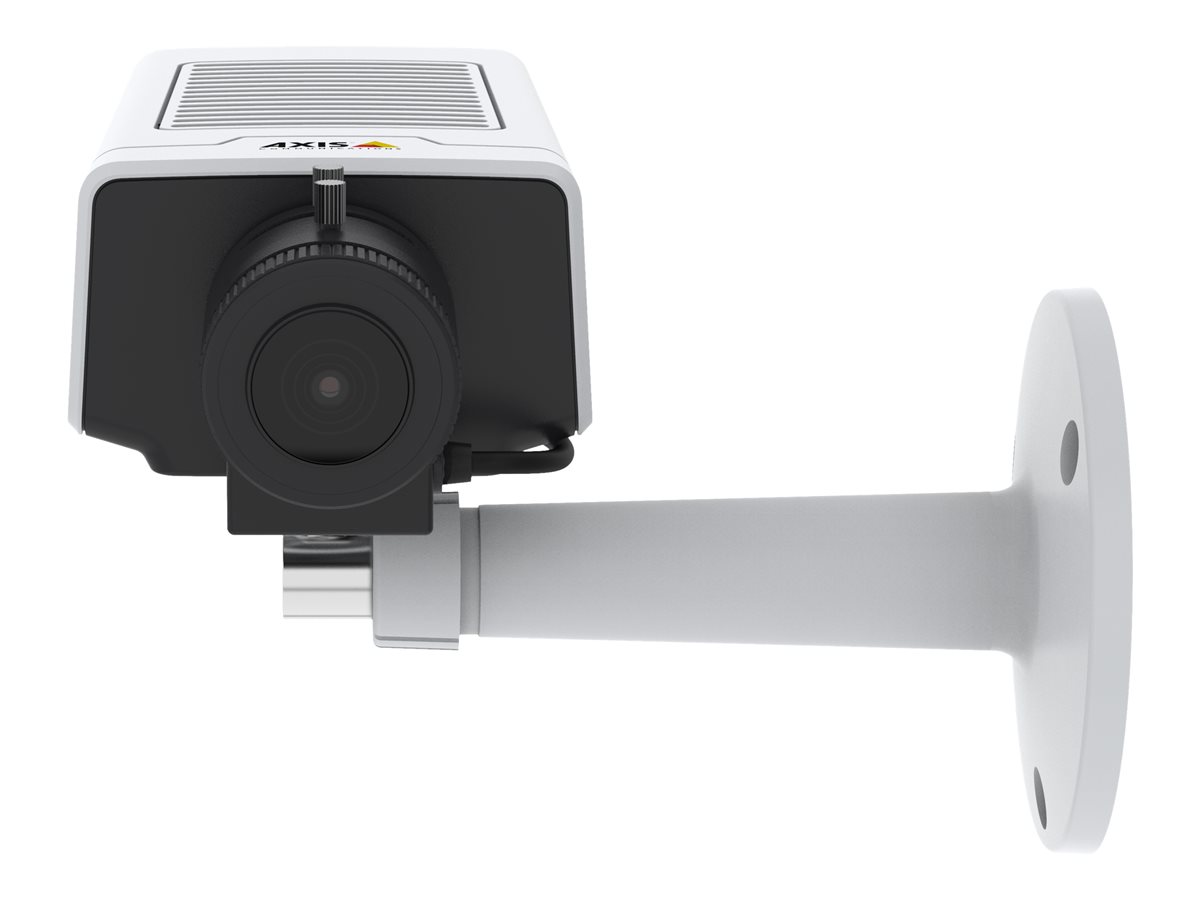

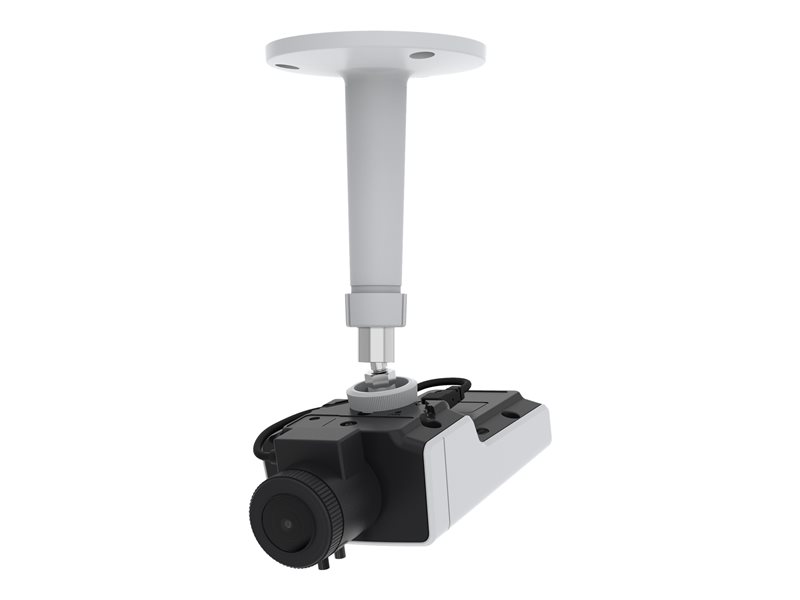

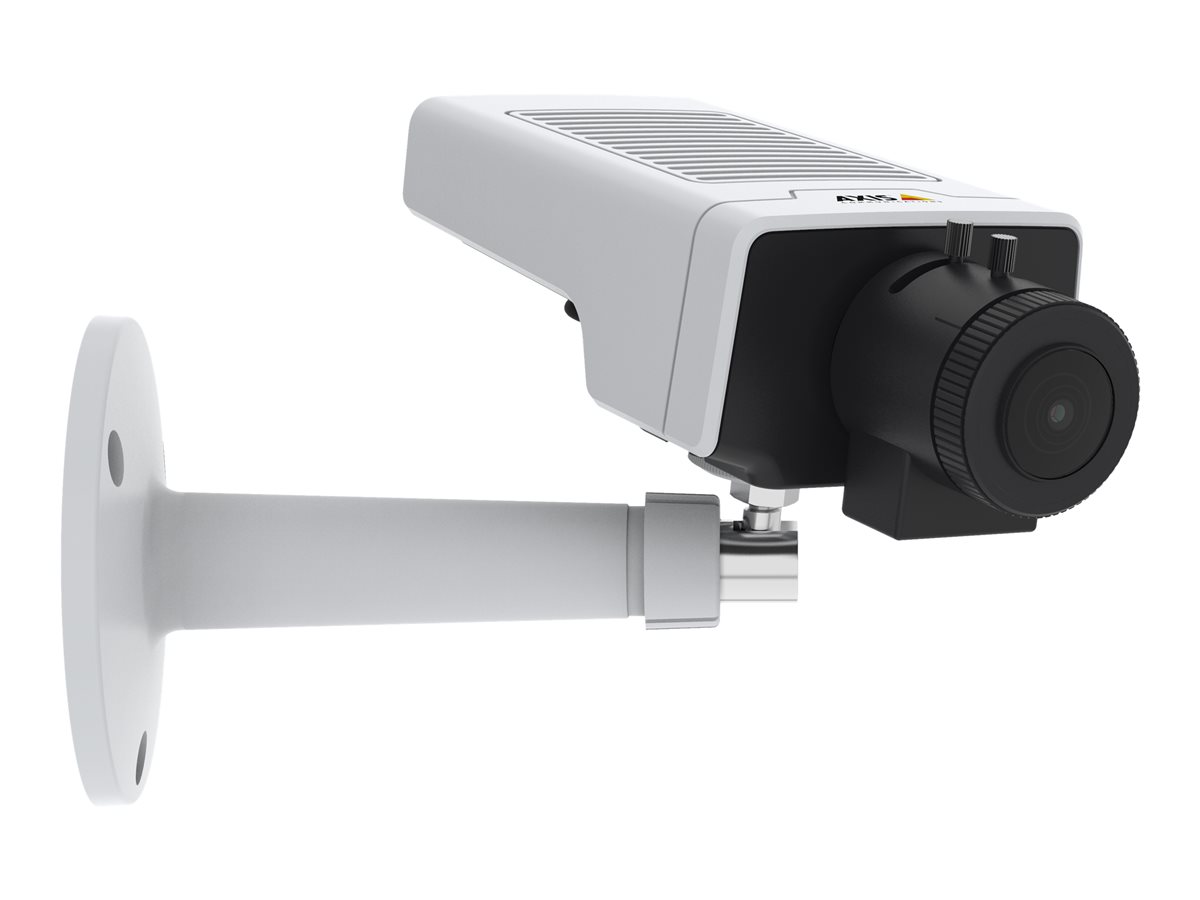

| Product Description | AXIS M1134 - network surveillance camera |
| Device Type | Network surveillance camera - fixed |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 1.9 in x 2.8 in x 5.8 in |
| Weight | 7.23 oz |
| Color | Black, white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 3.5 x |
| Max Resolution | 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p |
| Optical Sensor Type | RGB CMOS - 1/3" |
| Minimum Illumination | 0.15 lux - color - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE |
| Focal Length Control | Vari-focal |
| Focal Length | 3 mm - 10.5 mm |
| Lens Mounting | CS-mount |
| Lens Iris | F/1.4 - auto iris (DC) |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 8 - 28 V / PoE |
| Features | Sharpness control, white balance, color control, brightness control, contrast control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Video Motion Detection Technology, active tampering alarm, digital PTZ function, LED indicator, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -4 °F - 122 °F; 10 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology | Wired |
| Width | 1.9 in |
| Depth | 2.8 in |
| Height | 5.8 in |
| Weight | 7.23 oz |
| Localization | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Stand |
| Compliant Standards | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, EN 50581, KN24, KCC KN22, AS/NZS CISPR22:2004 Class A, EN 55022 Class A |
| Color | Black, white |
| Power | |
| Power Requirements | DC 8 - 28 V / PoE |
| Power Device | 6.49 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 80% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution | 1280 x 720 |
| Motion Detection | Yes |
| Video Modes | 720p |
| Exposure Range | 2 sec - 1/33500 sec |
| Minimum Illumination | 0.15 lux - color - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution | 1280 x 720, 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1024 MB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, color control, brightness control, contrast control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Video Motion Detection Technology, active tampering alarm, digital PTZ function, LED indicator, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Lens Construction | |
| Type | CS-mount - vari-focal |
| Optical Zoom | 3.5 x |
| Focal Length | 3 mm - 10.5 mm |
| Lens Iris | F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) | 33 - 90 |
| Vertical Field of View (degree) | 19 - 49 |
| Image Sensor | |
| Type | RGB CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
