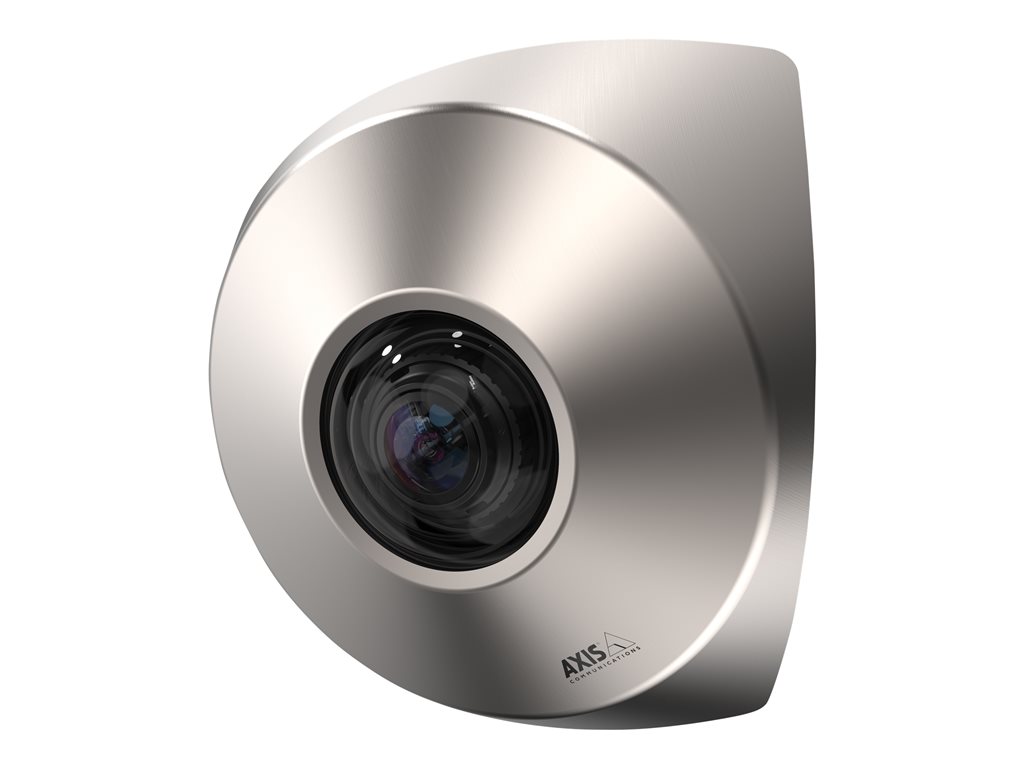

Axis Communications - AXIS P9106-V
Network surveillance camera - color - 3 MP - 2016 x 1512 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, MPEG-4 AVC - PoE
Axis Communications
01553-001
7331021064928
N/A
New
Price: $622.81
MSRP: $699.00
Discount off MSRP: 10.90%
Total Available: 0
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS P9106-V - network surveillance camera |
| Device Type | Network surveillance camera - fixed |
| Camera Mount Type | Wall mount, ceiling mount, corner mount |
| Dimensions (WxDxH) | 5.7 in x 4.8 in x 3.6 in |
| Weight | 23.1 oz |
| Color | Brushed steel |
| Connectivity Technology | Wired |
| Camera | Color |
| Max Resolution | 2016 x 1512 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p, 240p, 360p |
| Optical Sensor Type | CMOS - 1/3" - 3 MP |
| Minimum Illumination | 0.35 lux - color - F2.4 - 50 IRE |
| Focal Length Control | Fixed focal |
| Focal Length | 2.4 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/1.8 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE |
| Features | Motion sensor, Backlight Compensation (BLC), sharpness control, white balance, color control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), lens preset positioning, Privacy Mask Function, Video Motion Detector (VMD), tamper-detection, digital PTZ function, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 5 °F - 122 °F; 15 - 85% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Camera Mount Type | Wall mount, ceiling mount, corner mount |
| Connectivity Technology | Wired |
| Width | 5.7 in |
| Depth | 4.8 in |
| Height | 3.6 in |
| Weight | 23.1 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cable gaskets, drill hole template, connector guard, screw gaskets |
| Compliant Standards | C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1, IK10, IP66, IEEE 802.3af, IEEE 802.3at |
| Color | Brushed steel |
| Power | |
| Power Requirements | PoE |
| Power Device | 3.2 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | 5 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 15 - 85% (non-condensing) |
| Camera | |
| Type | Color - fixed |
| Digital Video Format | MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution | 2016 x 1512 |
| Motion Detection | Yes |
| Video Modes | 1080p, 240p, 360p |
| Exposure Range | 1/5 sec - 1/32500 sec |
| Minimum Illumination | 0.35 lux - color - F2.4 - 50 IRE |
| Digital Video Capture Resolution | 320 x 240, 1920 x 1080, 640 x 360, 2016 x 1512 |
| Frame Rate (max) | 30 frames per second |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Motion sensor, Backlight Compensation (BLC), sharpness control, white balance, color control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), lens preset positioning, Privacy Mask Function, Video Motion Detector (VMD), tamper-detection, digital PTZ function, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.4 mm |
| Lens Iris | F/1.8 fixed iris |
| Horizontal Field of View (degree) | 130 |
| Vertical Field of View (degree) | 95 |
| Image Sensor | |
| Type | 3 MP CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
